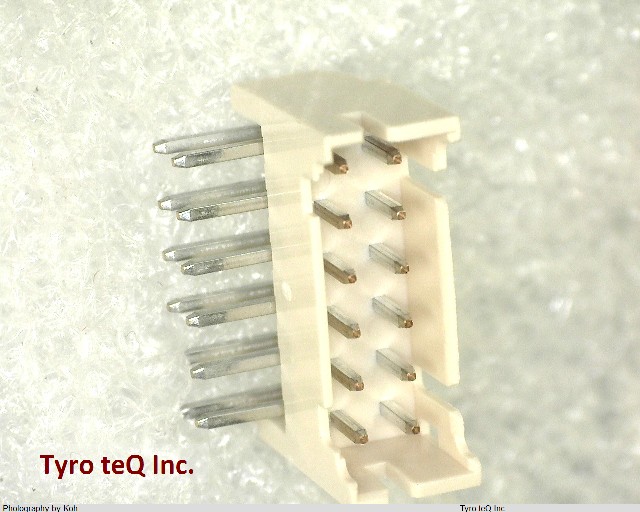

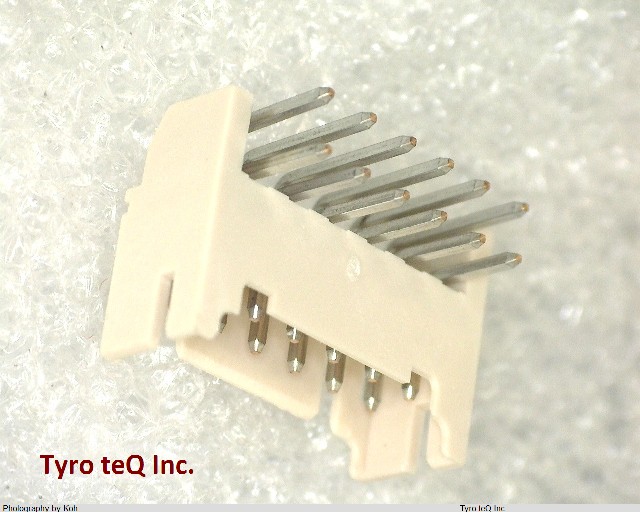

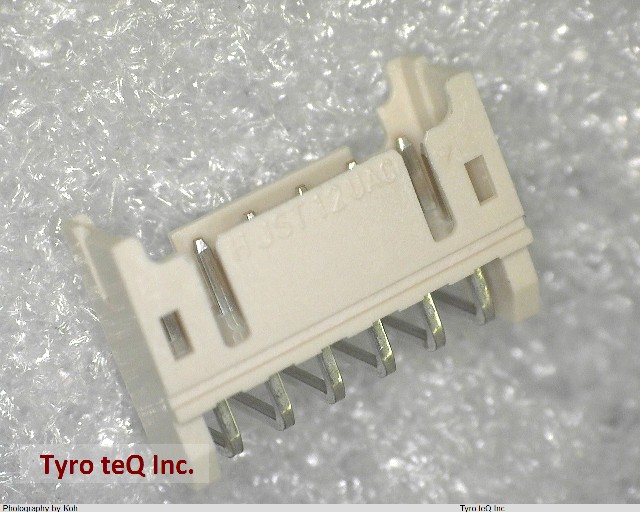

S12B-PHDSS データシート

Name: S12B-PHDSS
Brand: JST
SKU: 290226696-0000-0000-0000

S12B-PHDSS - JST の商品詳細ページです。

２営業日以内に回答いたします

S12B-PHDSS の詳細情報

型番	S12B-PHDSS
メーカー	JST
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.197 inch
Body Depth	0.354 inch
Body Length	0.547 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	GLASS FILLED POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2 mm
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.118 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	12
UL Flammability Code	94V-0
