S10BPHDSS データシート

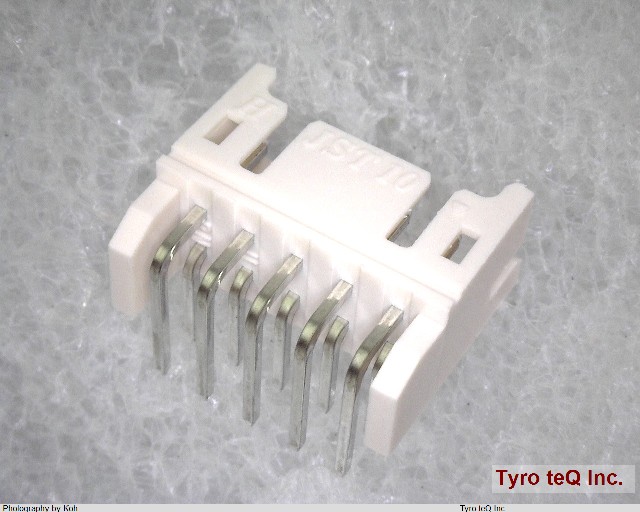

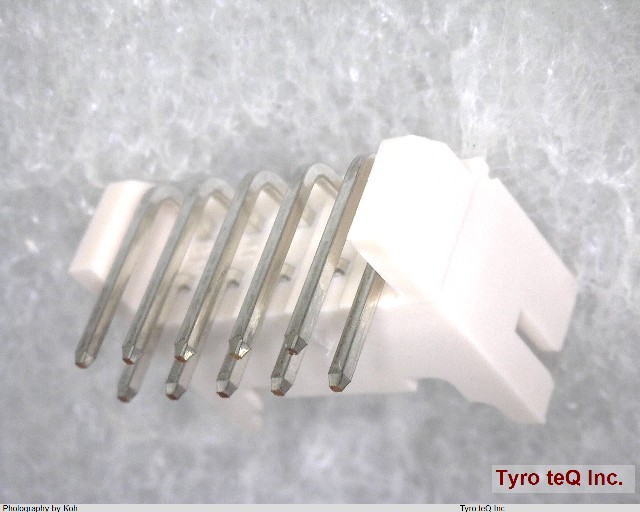

Name: S10BPHDSS
Brand: JST
SKU: 290003132-0000-0000-0000

S10BPHDSS - JST の商品詳細ページです。

No Image

２営業日以内に回答いたします

S10BPHDSS の詳細情報

型番	S10BPHDSS
メーカー	JST
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.197 inch
Body Depth	0.374 inch
Body Length	0.469 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	TIN OVER COPPER
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	IVORY
Insulator Material	GLASS FILLED POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	PHD
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS ARE AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2 mm
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.118 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
