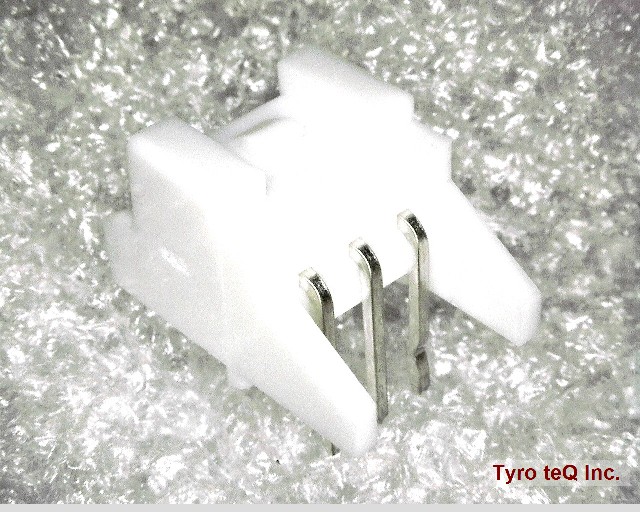

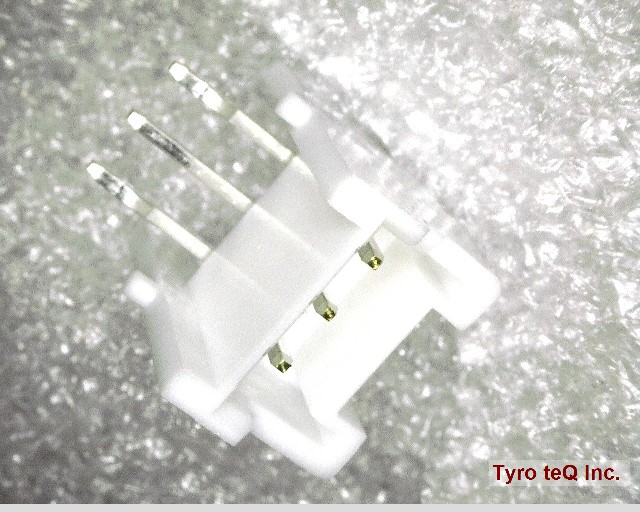

S03B-PASK-2(LF)(SN) データシート

Name: S03B-PASK-2(LF)(SN)
Brand: JST
SKU: 290226558-0000-0000-0000

S03B-PASK-2(LF)(SN) - JST の商品詳細ページです。

No Image

２営業日以内に回答いたします

S03B-PASK-2(LF)(SN) の詳細情報

型番	S03B-PASK-2(LF)(SN)
メーカー	JST
データシート
Additional Feature	SHROUDED, SIDE ENTRY
Board Mounting Option	PEG
Body Breadth	0.256 inch
Body Depth	0.461 inch
Body Length	0.315 inch
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn) over Copper (Cu)
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.134 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	3
UL Flammability Code	94V-0
