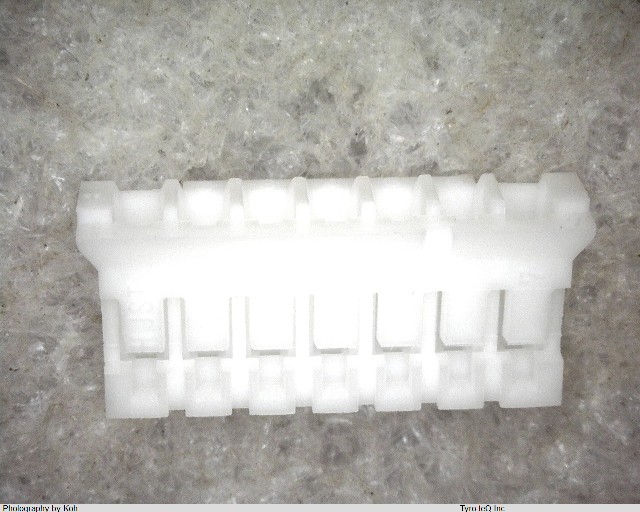

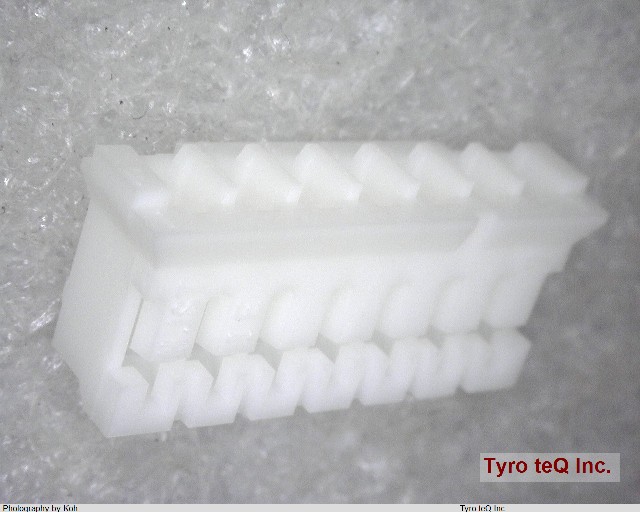

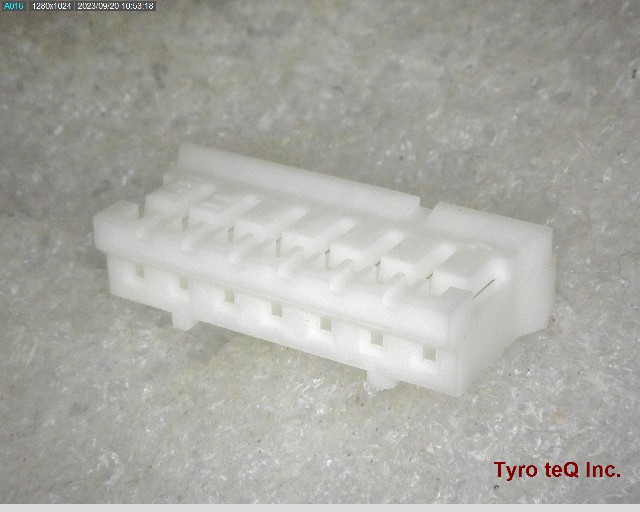

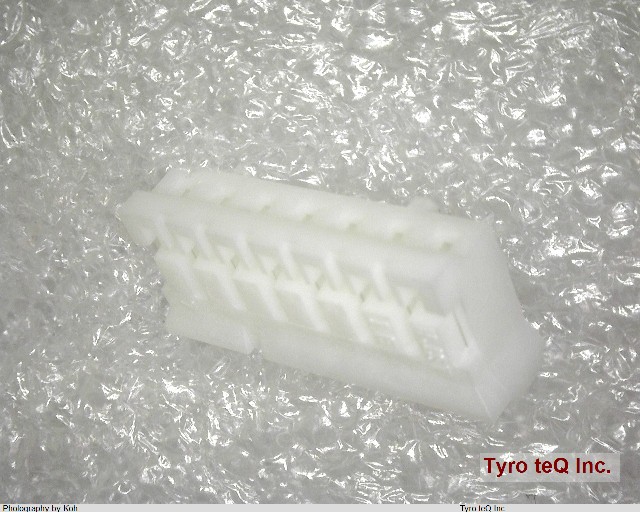

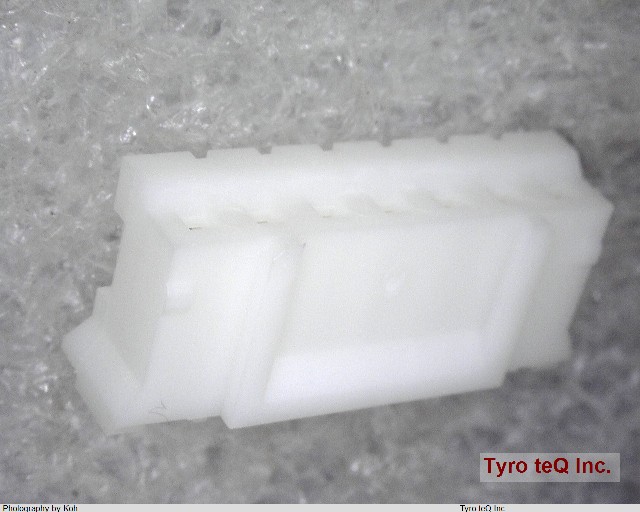

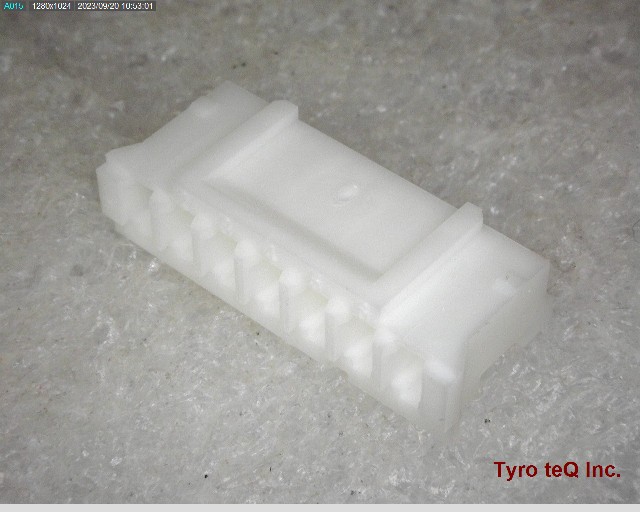

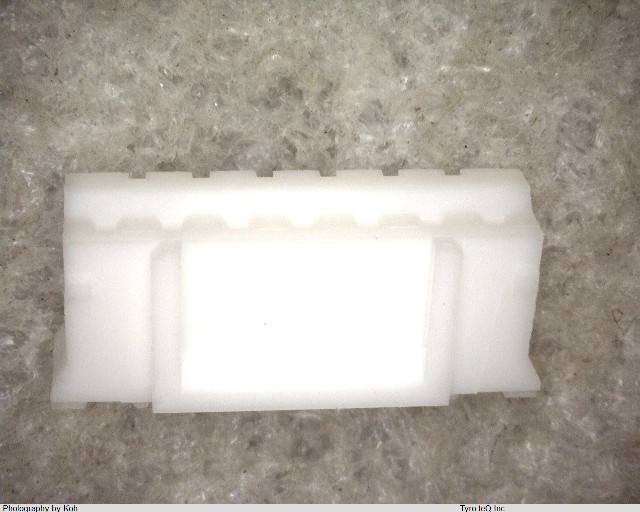

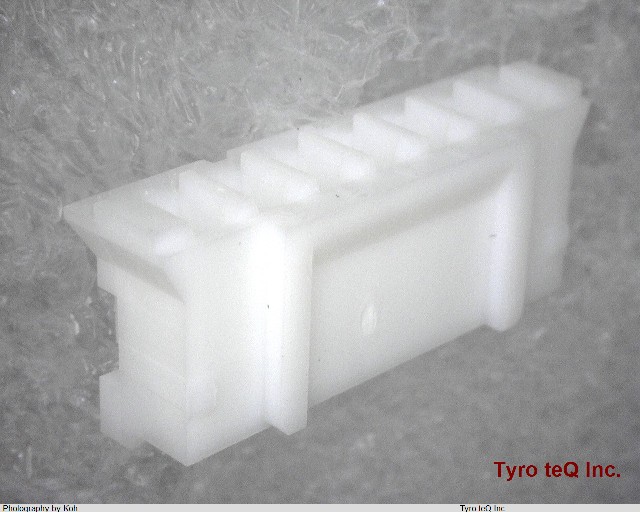

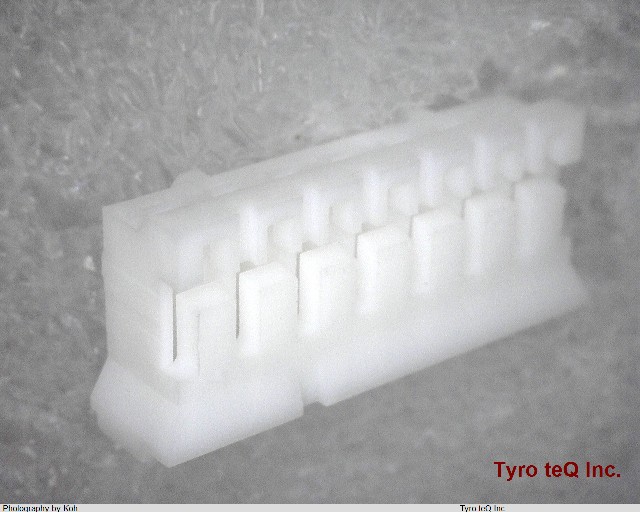

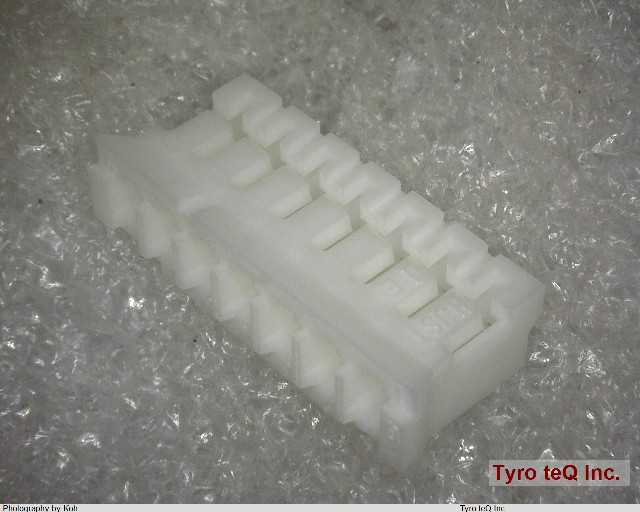

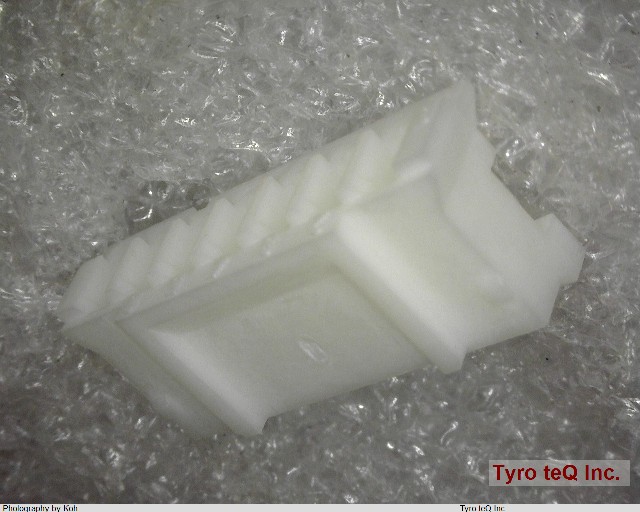

PHR-7
データシート
1
-
- 個
２営業日以内に回答いたします
PHR-7 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | PHR-7 |
|---|---|
| メーカー | JST |
| データシート |  |
| Additional Feature | INSULATOR COLOR: LEMON YELLOW |
| Body Breadth | 0.177 inch |
| Body Depth | 0.27 inch |
| Body Length | 0.622 inch |
| Connector Type | BOARD CONNECTOR |
| Contact Finish - Mating | NOT SPECIFIED |
| Contact Finish - Termination | Tin (Sn) |
| Contact Gender | FEMALE |
| Contact Material | NOT SPECIFIED |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 20 mohm |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 800VAC V |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulation Resistance | 1000000000 ohm |
| Insulator Color | BLACK |
| Insulator Material | POLYAMIDE |
| JESD-609 Code | e3 |
| MIL Conformance | NO |
| Manufacturer Series | PH |
| Mating Contact Pitch | 0.079 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Type | CABLE |
| Number Of Connectors | ONE |
| Number of Rows Loaded | 1 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -25 Cel |
| Option | GENERAL PURPOSE |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 2 A |
| Reference Standard | TUV; UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Termination Type | CRIMP |
| Total Number of Contacts | 7 |
| UL Flammability Code | 94V-0 |
| Wire Size-Max | 24 AWG |
| Wire Size-Min | 30 AWG |
| 会社名称 | 日本圧着端子製造株式会社 |
|---|---|
| 設立 | 1957年9月9日 |
| 資本金 | 6,100万円 |
| 所在地 | 541-0045 大阪市中央区道修町三丁目4番7号 |
| URL | http://www.jst-mfg.com/ |
