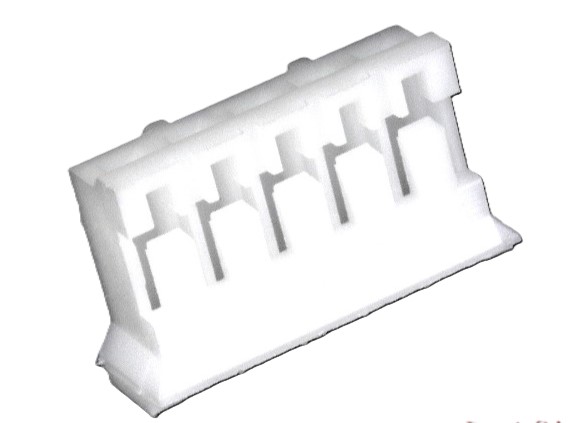

PHR-5 データシート

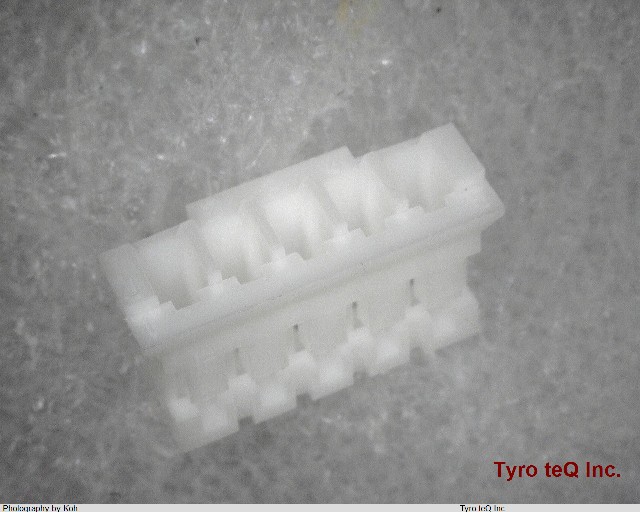

Name: PHR-5
Brand: JST
SKU: 260076463-0000-0000-0000

PHR-5 - JST の商品詳細ページです。

２営業日以内に回答いたします

PHR-5 の詳細情報

型番	PHR-5
メーカー	JST
データシート
Additional Feature	INSULATOR COLOR: LEMON YELLOW
Backshell Type	SOLID
Body Breadth	0.177 inch
Body Depth	0.27 inch
Body Length	0.465 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Coupling Type	SNAP
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	5G
Mating Contact Pitch	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reference Standard	TUV; UL
Reliability	COMMERCIAL
Shell Material	ALUMINUM ALLOY
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	5
UL Flammability Code	94V-0
Wire Size-Max	24 AWG
Wire Size-Min	30 AWG
