PHDR-20VS データシート

Name: PHDR-20VS
Brand: JST
SKU: 260117345-0000-0000-0000

PHDR-20VS - JST の商品詳細ページです。

２営業日以内に回答いたします

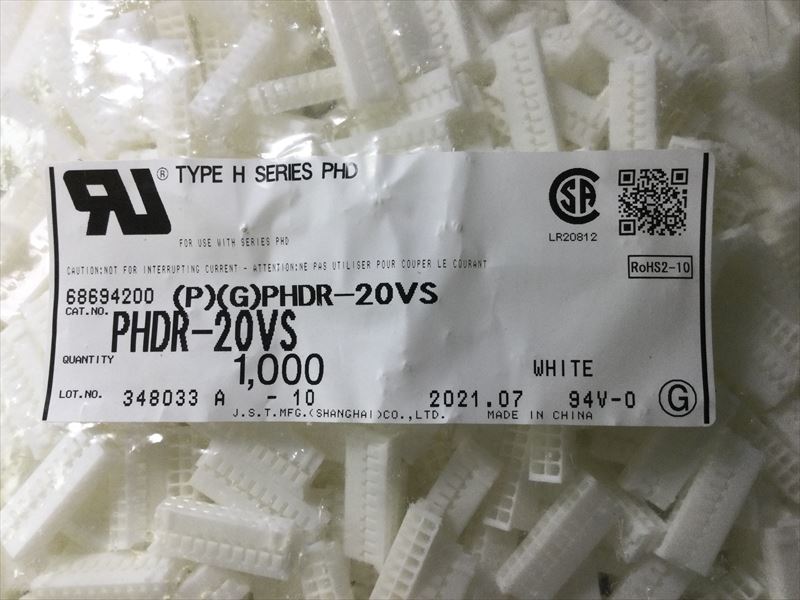

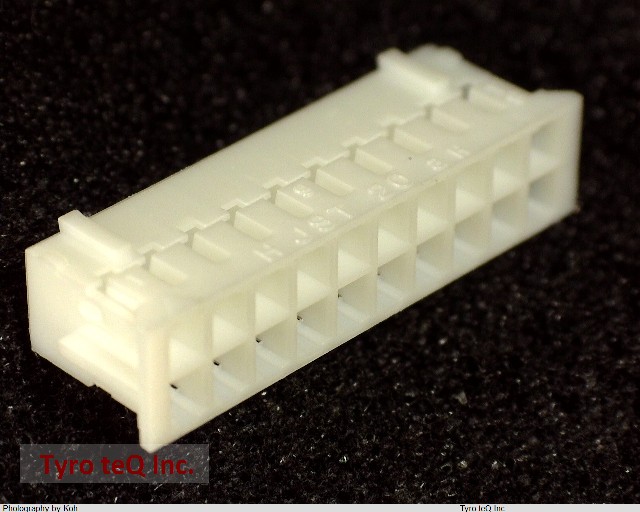

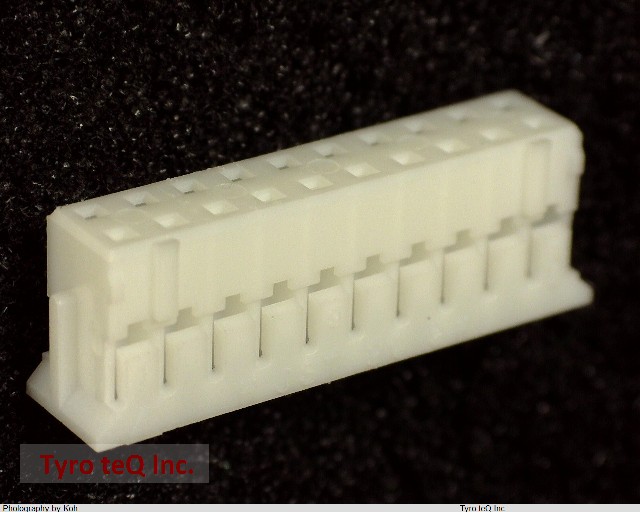

PHDR-20VS の詳細情報

型番	PHDR-20VS
メーカー	JST
データシート
Additional Feature	COMPATIBLE CONTACTS: SPHD-002T-P0.5; SPHD-001T-P0.5, LOW PROFILE
Body Breadth	0.197 inch
Body Depth	0.287 inch
Body Length	0.862 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE66
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Termination Type	CRIMP
Total Number of Contacts	20
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	28 AWG
