MJ-88H-RD315K(LF)(SN) データシート

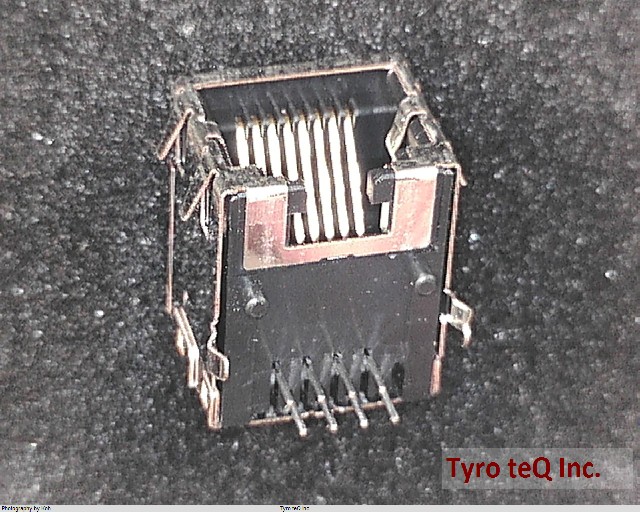

Name: MJ-88H-RD315K(LF)(SN)
Brand: JST
SKU: 230753348-0000-0000-0000

MJ-88H-RD315K(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

MJ-88H-RD315K(LF)(SN) の詳細情報

型番	MJ-88H-RD315K(LF)(SN)
メーカー	JST
データシート
Additional Feature	SHIELDED
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.512 inch
Body Depth	0.689 inch
Body Length	0.622 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	GOLD (50) OVER NICKEL
Contact Finish - Termination	TIN OVER NICKEL
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Ports	1
Number of Rows Loaded	1
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.54 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1.3 A
Terminal Pitch	2.04 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
