JK-SP2140 データシート

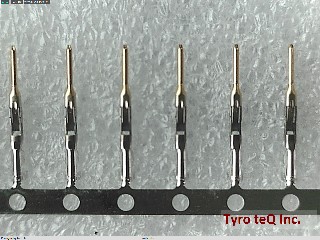

Name: JK-SP2140
Brand: JST
SKU: 200028333-0000-0000-0000

JK-SP2140 - JST の商品詳細ページです。

２営業日以内に回答いたします

JK-SP2140 の詳細情報

型番	JK-SP2140
メーカー	JST
データシート
Additional Feature	STANDARD: UL 94V-0, CONTACT FINISH: GOLD
Approvals	CSA; UL V
Assembly Item Name	CONTACT
Cable Entry-Max	0.035 inch
Cable Entry-Min	0.055 inch
Connector Support Type	CONNECTOR ACCESSORY
Contact Design	CHAIN
Contact Gender	MALE
Contact Resistance	30 mohm
DIN Conformance	NO
IEC Conformance	NO
MIL Conformance	NO
Material	BRASS
Mounting Style	STRAIGHT
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Rated Current	1 A
Rated Voltage (AC)	250 V
Rated Voltage (DC)	250 V
Terminal Length	0.142 inch
Terminal Type	CRIMP
Used With	D-SUB CONNECTOR
Wire Size-Max	24 AWG
Wire Size-Min	28 AWG
