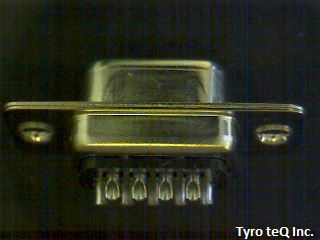

JEZ-9S データシート

Name: JEZ-9S
Brand: JST
SKU: 200035634-0000-0000-0000

JEZ-9S - JST の商品詳細ページです。

２営業日以内に回答いたします

JEZ-9S の詳細情報

型番	JEZ-9S
メーカー	JST
データシート
Additional Feature	SHIELDED
Body Breadth	0.494 inch
Body Depth	0.186 inch
Body Length	1.213 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	STAMPED, PREASSEM
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD FLASH
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	STAGGERED
Contact Resistance	30 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	J
Mating Contact Pitch	0.109 inch
Mating Contact Row Spacing	0.112 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	HOLE .112-.124
Mounting Type	CABLE AND PANEL
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Plating Thickness	8u inch
Rated Current (Signal)	3 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Shell Size	1/E
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	9
UL Flammability Code	94V-0
