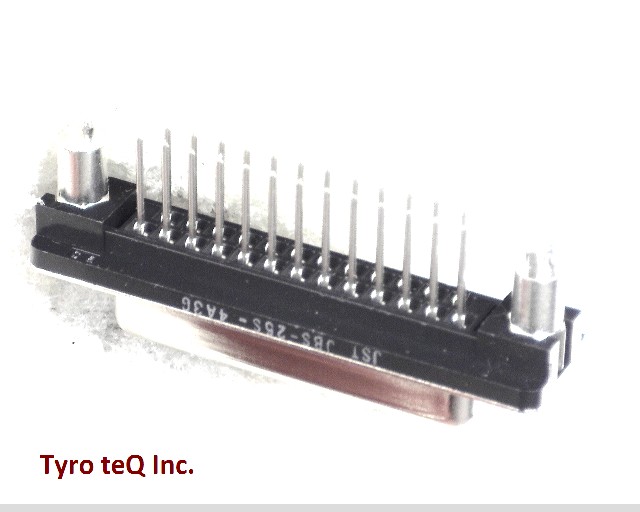

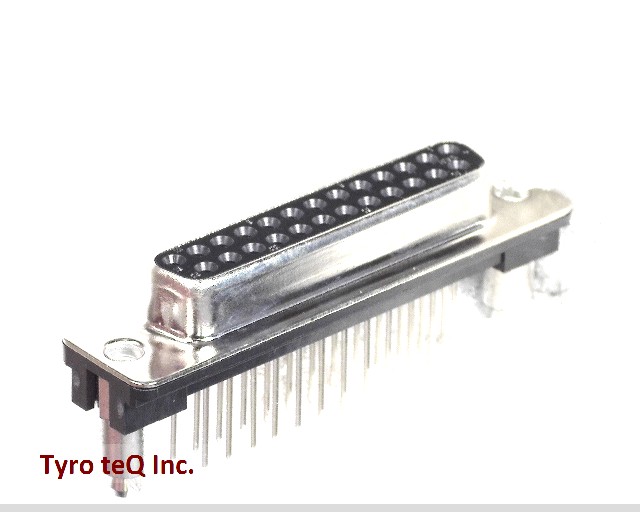

JBS-25S-4A3G データシート

Name: JBS-25S-4A3G
Brand: JST
SKU: 200080498-0000-0000-0000

JBS-25S-4A3G - JST の商品詳細ページです。

２営業日以内に回答いたします

JBS-25S-4A3G の詳細情報

型番	JBS-25S-4A3G
メーカー	JST
データシート
Additional Feature	GROUNDING ADAPTER
Board Mounting Option	HOLE .120
Body Breadth	0.494 inch
Body Depth	0.472 inch
Body Length	2.088 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	GOLD (30)
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	STAGGERED
Contact Resistance	30 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	J
Mating Contact Pitch	0.109 inch
Mating Contact Row Spacing	0.112 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	#4-40
Mounting Option 2	THREADED
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.84 mm
Plating Thickness	8u inch
Rated Current (Signal)	3 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Terminal Pitch	2.7686 mm
Termination Type	SOLDER
Total Number of Contacts	25
