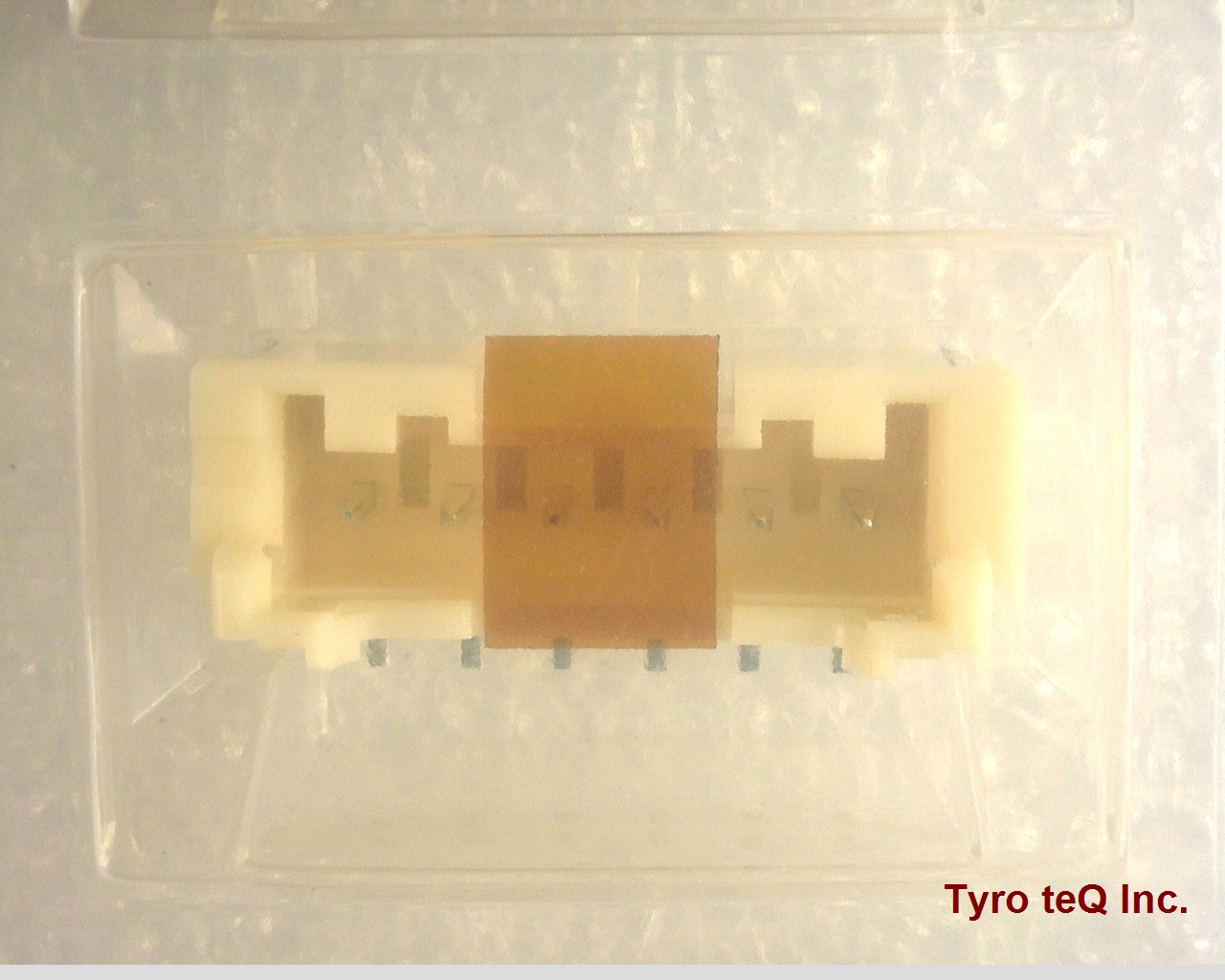

BM06B-PASS-1-TFT(LF)(SN)

Name: BM06B-PASS-1-TFT(LF)(SN)
Brand: JST
SKU: 400095650-0000-0000-0000

BM06B-PASS-1-TFT(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

BM06B-PASS-1-TFT(LF)(SN) の詳細情報

型番	BM06B-PASS-1-TFT(LF)(SN)
メーカー	JST
Board Mounting Option	SOLDER HOLD DOWN
Body Breadth	0.224 inch
Body Depth	0.35 inch
Body Length	0.63 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Termination	TIN
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	IVORY
Insulator Material	POLYAMIDE
JESD-609 Code	e3
Mating Contact Pitch	0.078 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED KEY
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Pitch	2 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	6
UL Flammability Code	94V-0
