BM05BGHSTBTLFSNN データシート

Name: BM05BGHSTBTLFSNN
Brand: JST
SKU: 120185542-0000-0000-0000

BM05BGHSTBTLFSNN - JST の商品詳細ページです。

２営業日以内に回答いたします

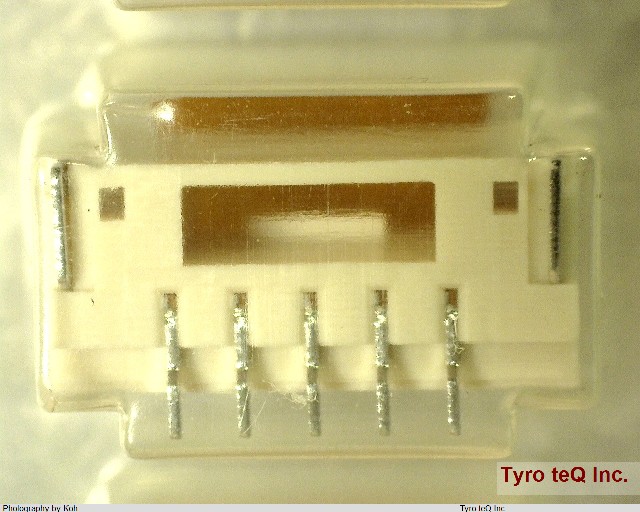

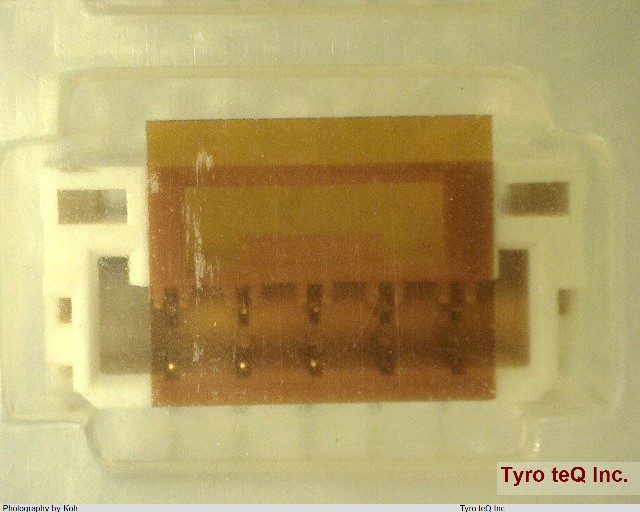

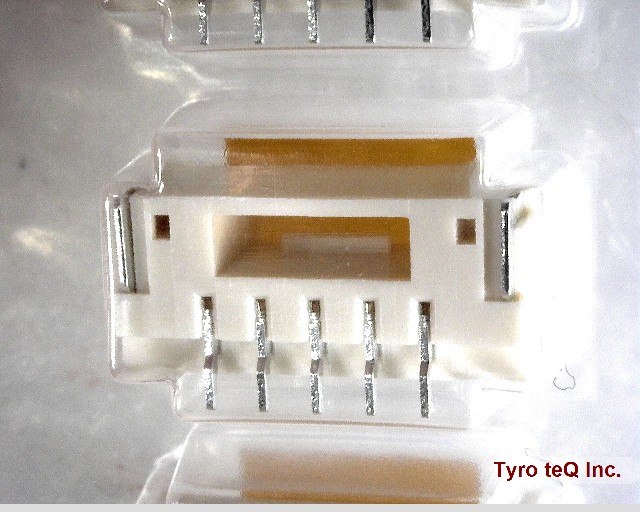

BM05BGHSTBTLFSNN の詳細情報

型番	BM05BGHSTBTLFSNN
メーカー	JST
データシート
Body Breadth	0.167 inch
Body Depth	0.159 inch
Body Length	0.374 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	SN ON CU
Contact Finish - Termination	TIN OVER COPPER
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Dielectric Withstanding Voltage	500VAC V
Insulation Resistance	100000000 ohm
Insulator Color	IVORY
Insulator Material	POLYAMIDE
Manufacturer Series	GH
Mating Contact Pitch	0.049 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	1.2446 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	5
