BH3P-VH-1 データシート

Name: BH3P-VH-1
Brand: JST
SKU: 120067438-0000-0000-0000

BH3P-VH-1 - JST の商品詳細ページです。

２営業日以内に回答いたします

BH3P-VH-1 の詳細情報

型番	BH3P-VH-1
メーカー	JST
データシート

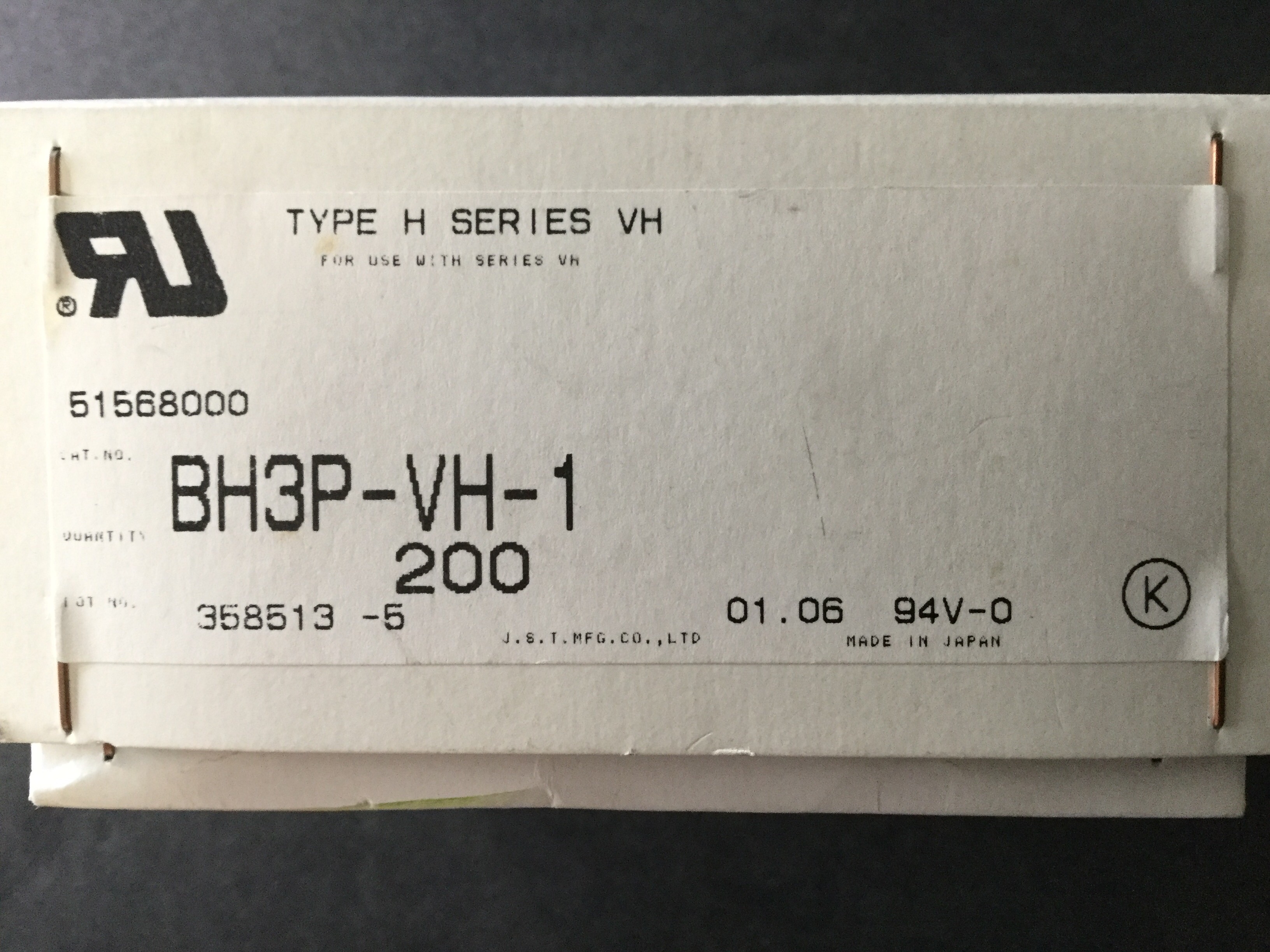

Additional Feature	200 PIECES IN BOX PACKAGING
Board Mounting Option	POSITIONING PIN
Body Breadth	0.362 inch
Body Depth	0.622 inch
Body Length	0.542 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	SN-PB ON CU
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1500VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	VH
Mating Contact Pitch	0.156 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	7 A
Reference Standard	UL,CSA,TUV
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	3.96 mm
Termination Type	SOLDER
Total Number of Contacts	3
UL Flammability Code	94V-0
