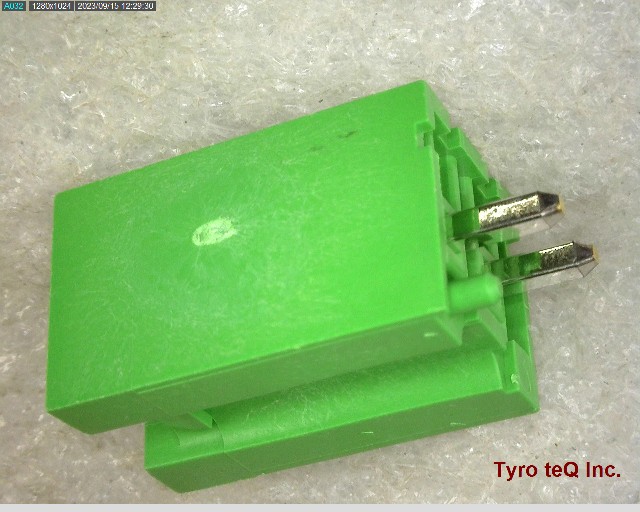

BH2P-VH-1-M

Name: BH2P-VH-1-M
Brand: JST
SKU: 400024852-0000-0000-0000

BH2P-VH-1-M - JST の商品詳細ページです。

２営業日以内に回答いたします

BH2P-VH-1-M の詳細情報

型番	BH2P-VH-1-M
メーカー	JST
Additional Feature	250 PIECES IN BOX PACKAGING
Board Mounting Option	POSITIONING PIN
Body Breadth	0.362 inch
Body Depth	0.622 inch
Body Length	0.386 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	SN-PB ON CU
Contact Finish - Termination	Tin/Lead
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1500VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	GREEN
Insulator Material	GLASS FILLED POLYAMIDE
Manufacturer Series	VH
Mating Contact Pitch	0.156 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	7 A
Reference Standard	UL,CSA,TUV
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	3.9624 mm
Termination Type	SOLDER
Total Number of Contacts	2
