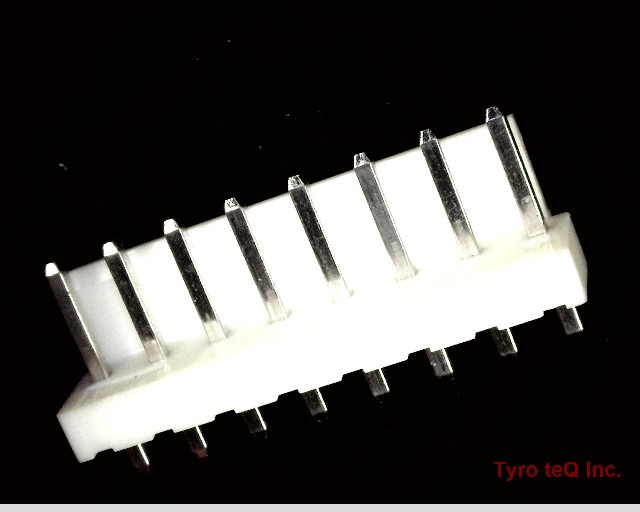

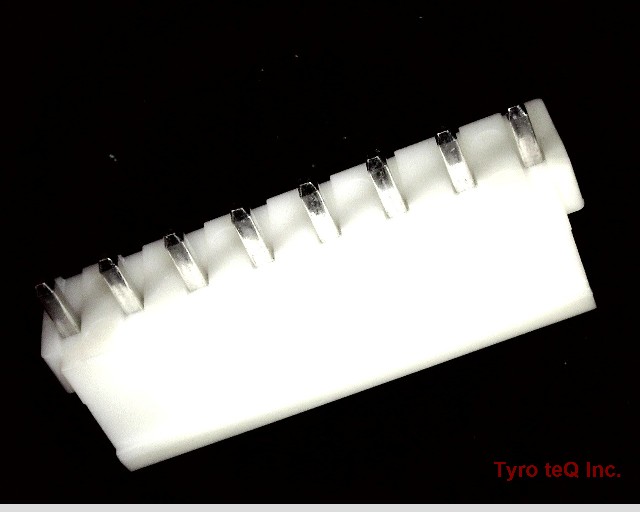

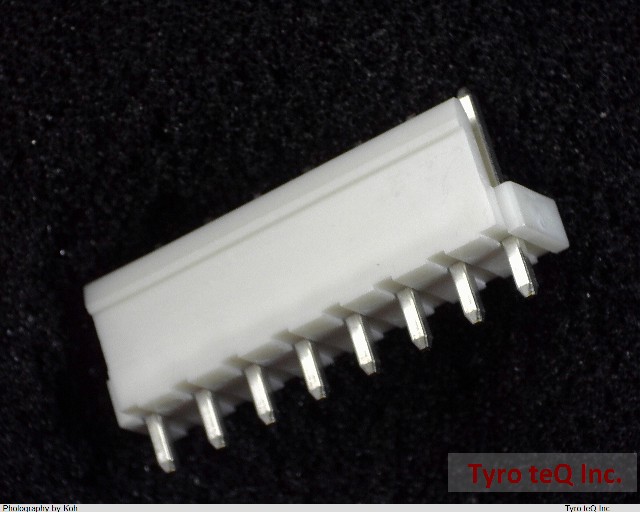

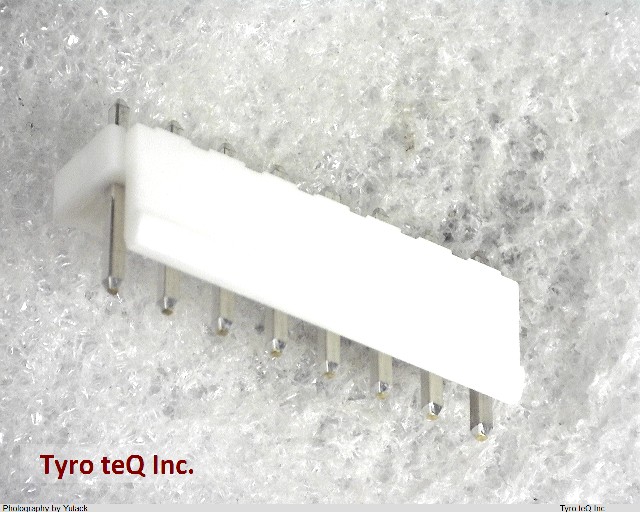

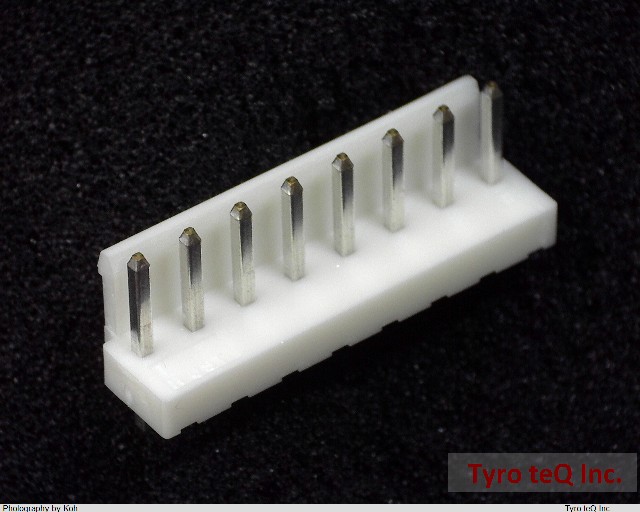

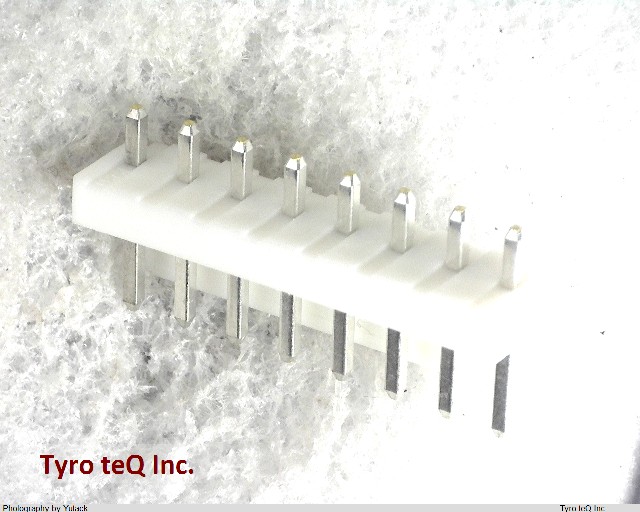

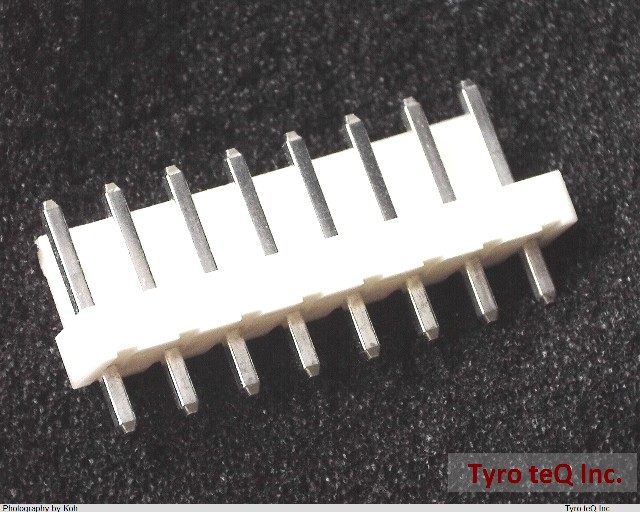

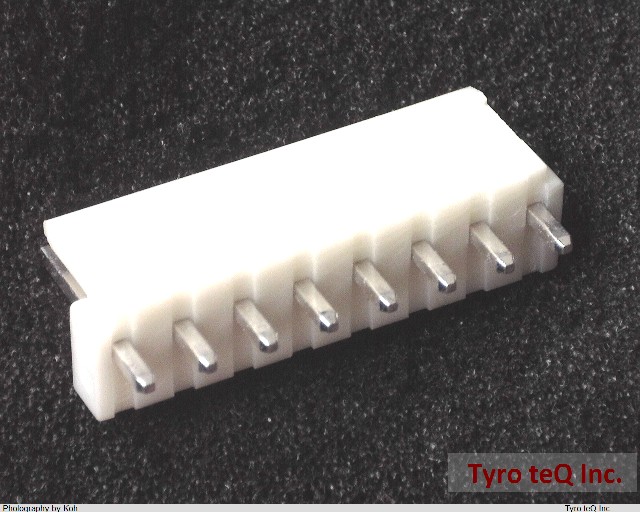

B8P-VH データシート

Name: B8P-VH
Brand: JST
SKU: 120009717-0000-0000-0000

B8P-VH - JST の商品詳細ページです。

２営業日以内に回答いたします

B8P-VH の詳細情報

型番	B8P-VH
メーカー	JST
データシート
Additional Feature	TOP ENTRY
Body Breadth	0.335 inch
Body Depth	0.37 inch
Body Length	1.245 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.156 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	1
Number of Rows Loaded	1
Option	GENERAL PURPOSE
Terminal Pitch	3.96 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
