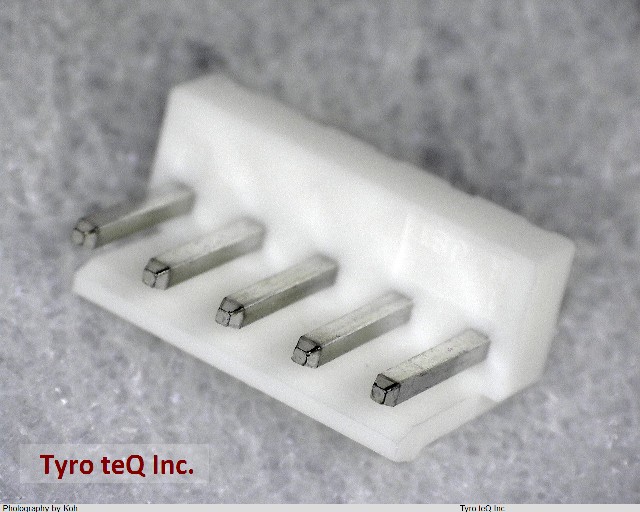

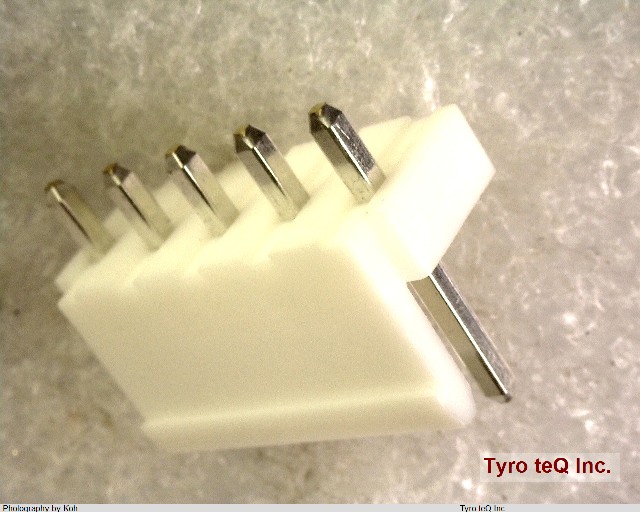

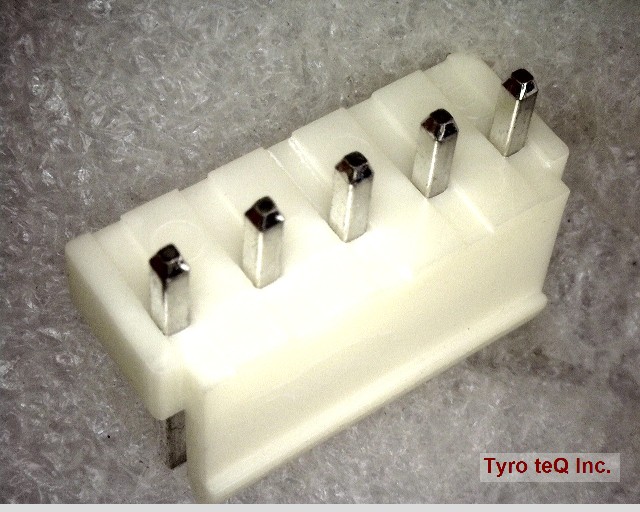

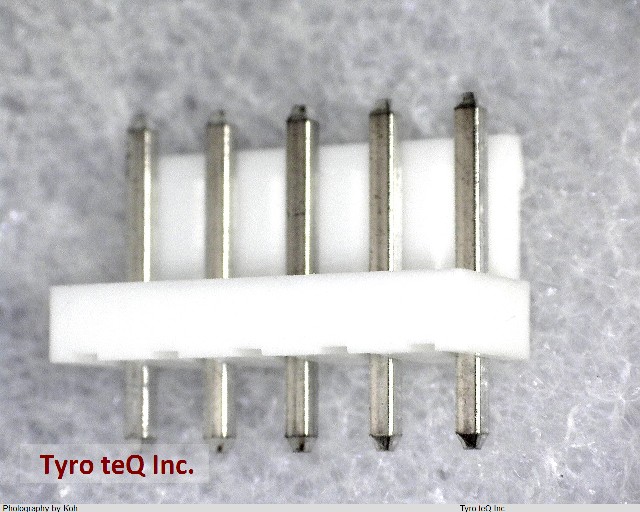

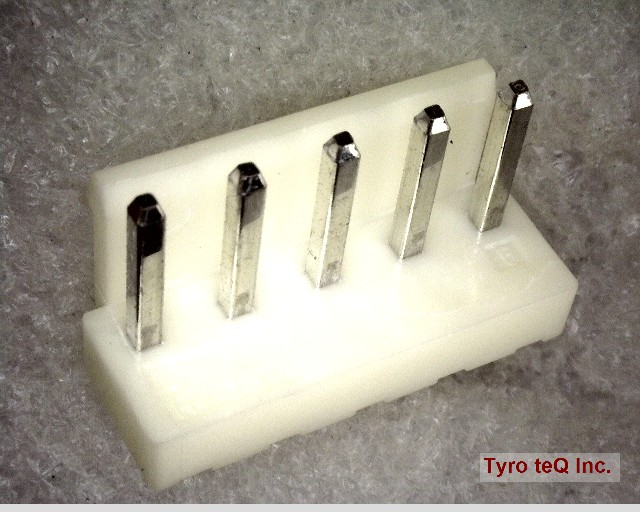

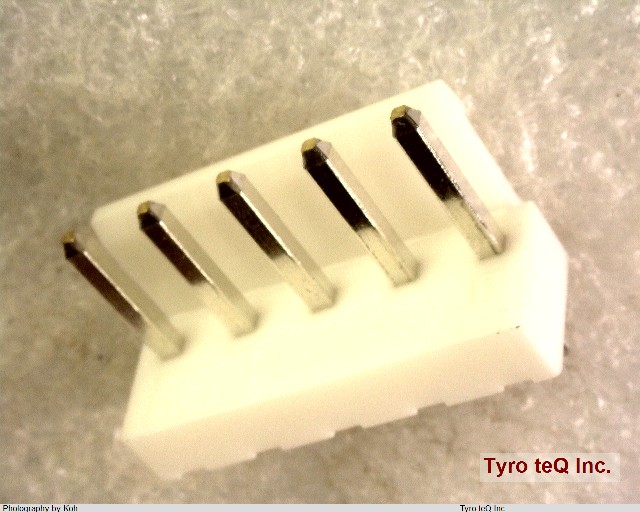

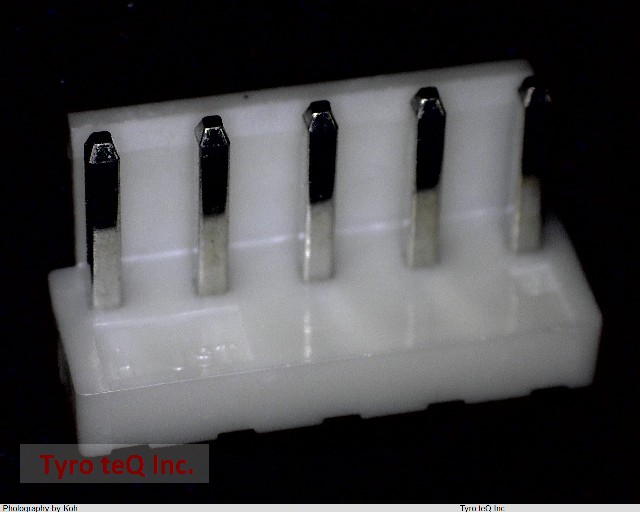

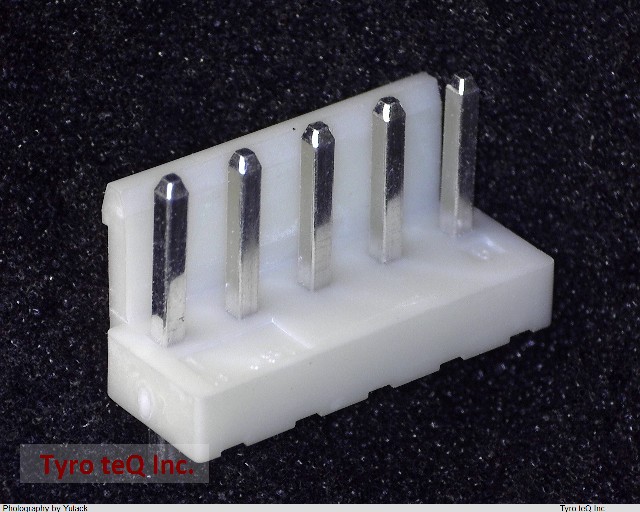

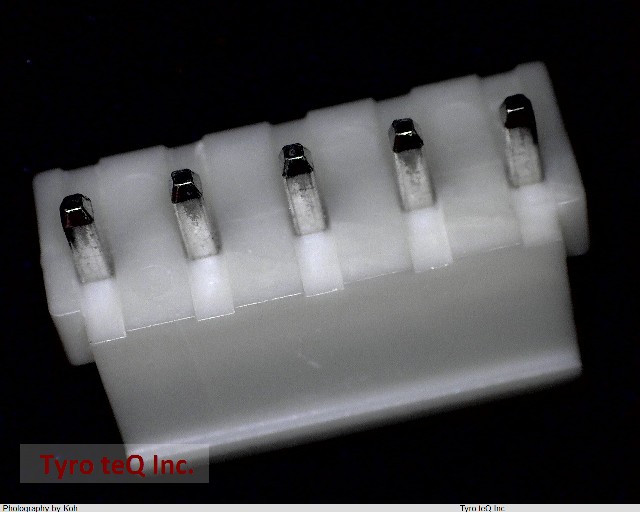

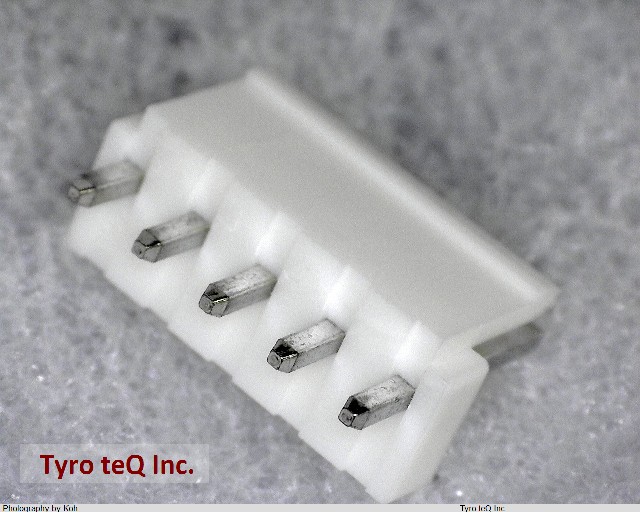

B5P-VH データシート

Name: B5P-VH
Brand: JST
SKU: 120067496-0000-0000-0000

B5P-VH - JST の商品詳細ページです。

２営業日以内に回答いたします

B5P-VH の詳細情報

型番	B5P-VH
メーカー	JST
データシート
Additional Feature	TOP ENTRY
Body Breadth	0.335 inch
Body Depth	0.37 inch
Body Length	0.777 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYAMIDE66
JESD-609 Code	e2
MIL Conformance	NO
Manufacturer Series	VH
Mating Contact Pitch	0.156 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	1
Number of Rows Loaded	1
Option	GENERAL PURPOSE
Terminal Pitch	3.96 mm
Termination Type	SOLDER
Total Number of Contacts	5
UL Flammability Code	94V-0
