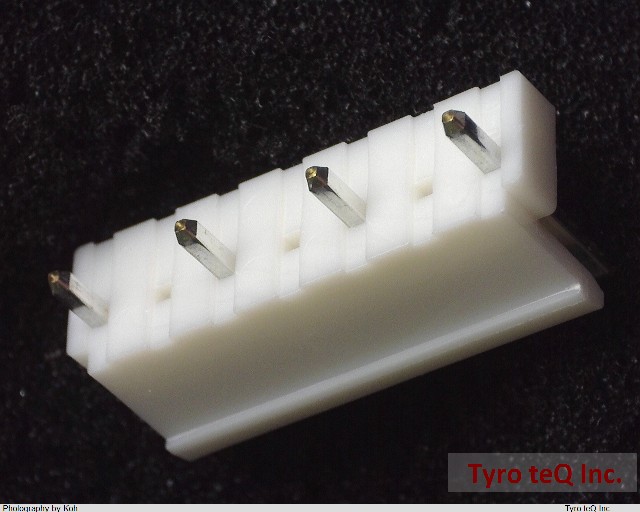

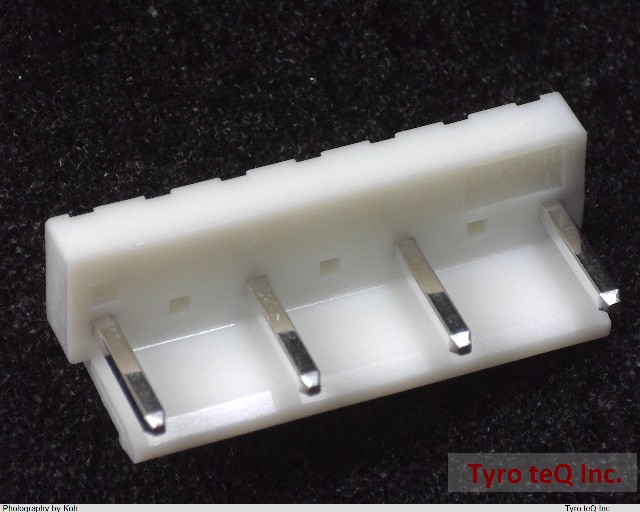

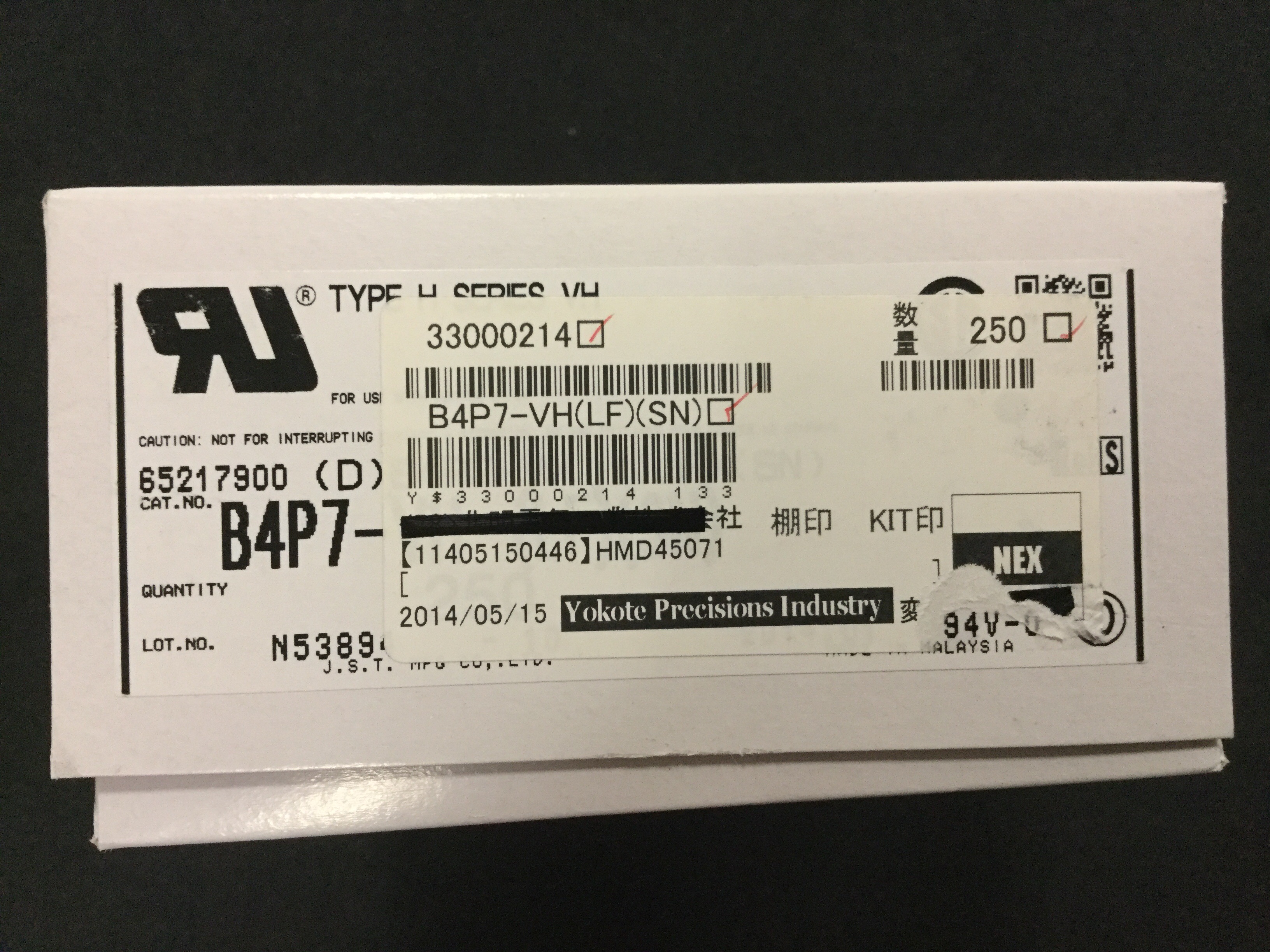

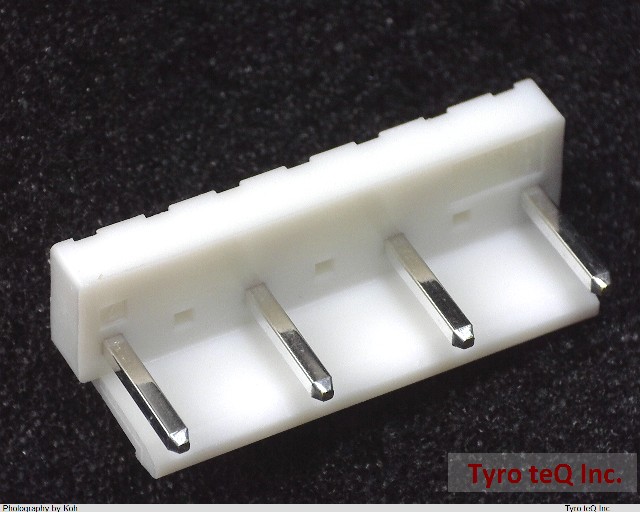

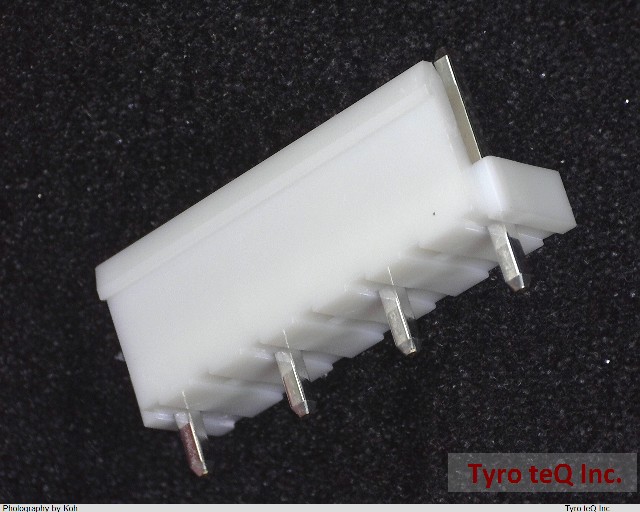

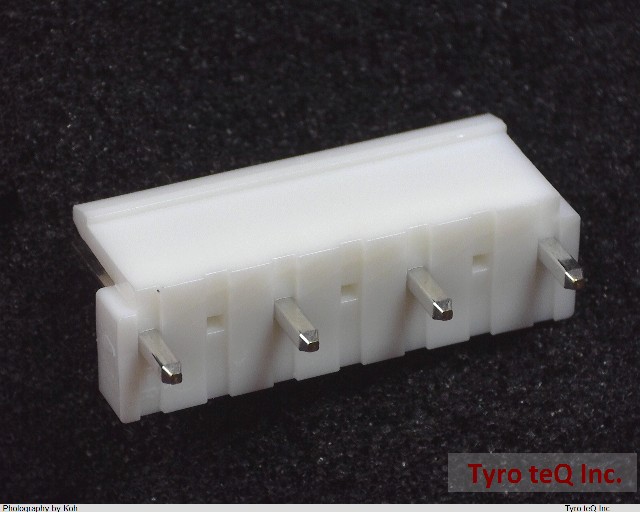

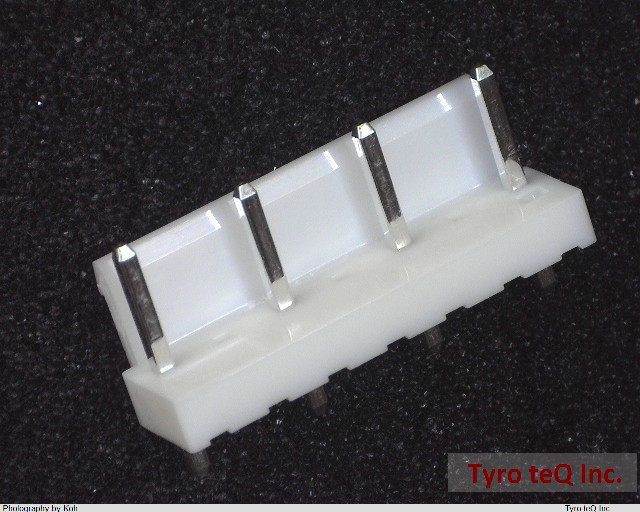

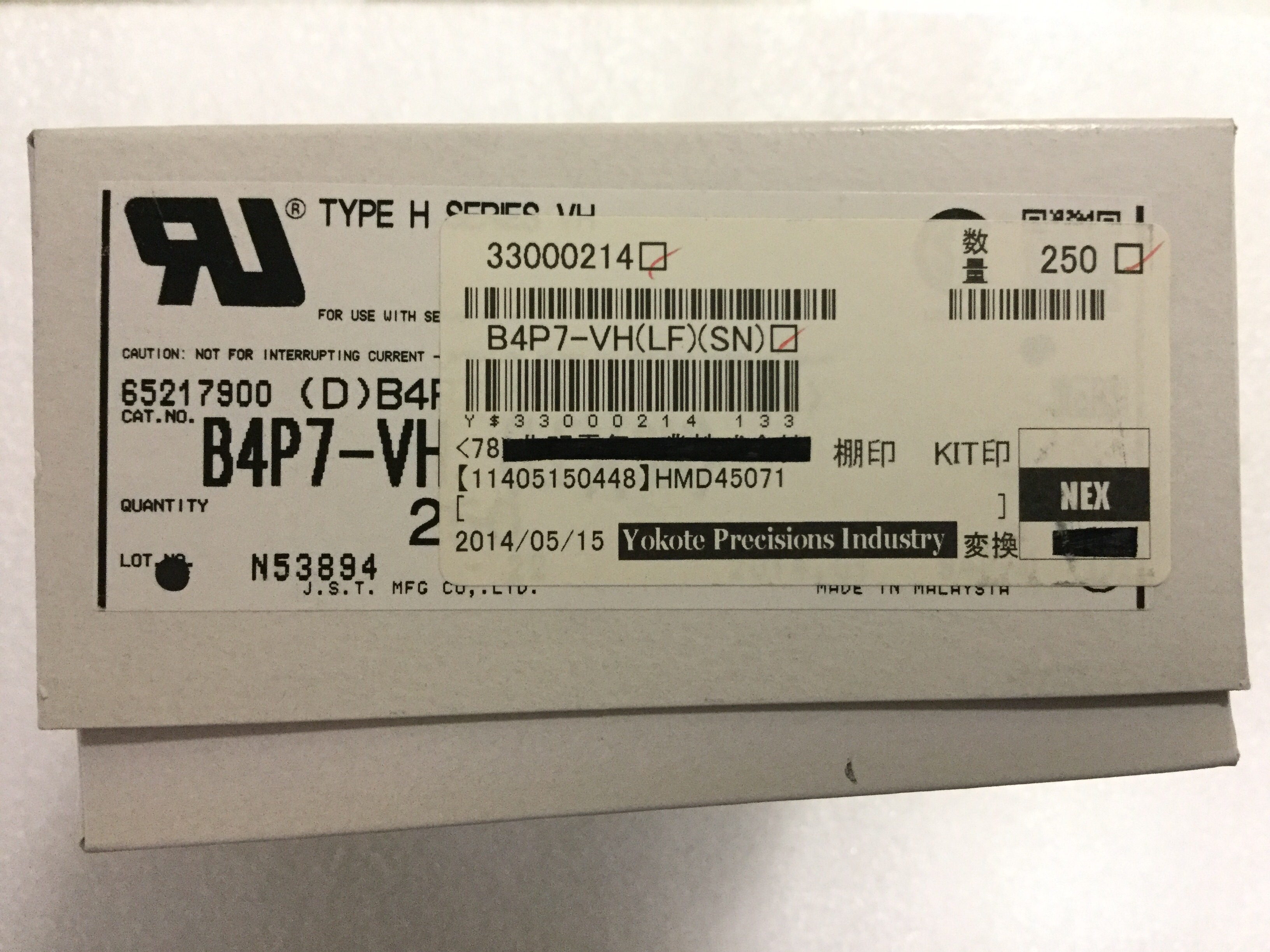

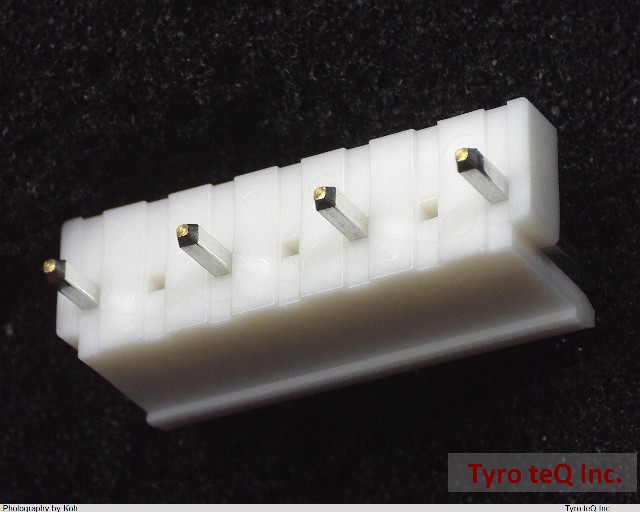

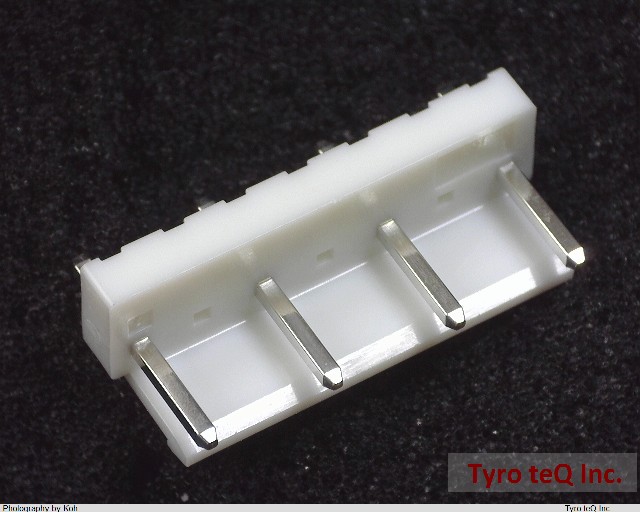

B4P7-VH(LF)(SN)

Name: B4P7-VH(LF)(SN)
Brand: JST
SKU: 120188748-0000-0000-0000

B4P7-VH(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

B4P7-VH(LF)(SN) の詳細情報

型番	B4P7-VH(LF)(SN)
メーカー	JST
Body Breadth	0.34 inch
Body Depth	0.37 inch
Body Length	1.09 inch
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1500VAC V
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	POLYAMIDE66
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	10 A
Reference Standard	CSA;TUV;UL
Terminal Length	0.15 inch
Terminal Pitch	3.96 mm
Termination Type	SOLDER
Total Number of Contacts	4
UL Flammability Code	94V-0
