B4B-PH-SM4-TB(LF)(SN) データシート

Name: B4B-PH-SM4-TB(LF)(SN)
Brand: JST
SKU: 120108561-0000-0000-0000

B4B-PH-SM4-TB(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

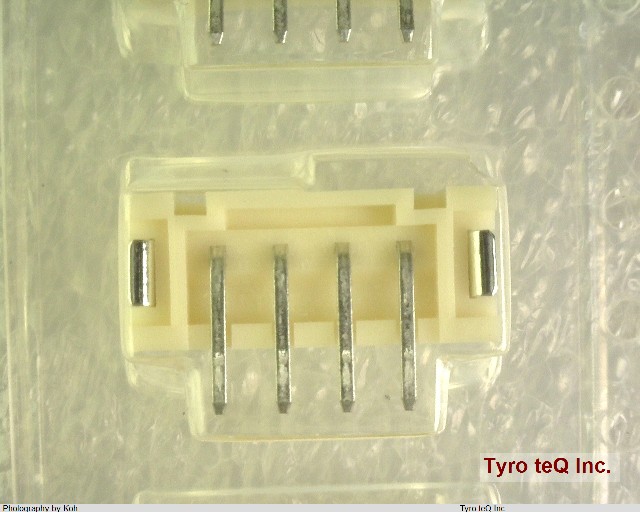

B4B-PH-SM4-TB(LF)(SN) の詳細情報

型番	B4B-PH-SM4-TB(LF)(SN)
メーカー	JST
データシート
Additional Feature	TOP ENTRY
Body Breadth	0.276 inch
Body Depth	0.259 inch
Body Length	0.47 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn) - reflowed
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	2 A
Reference Standard	TUV; UL
Terminal Pitch	2 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	4
UL Flammability Code	94V-0
