B3B-XH-A(LF)(SN) データシート

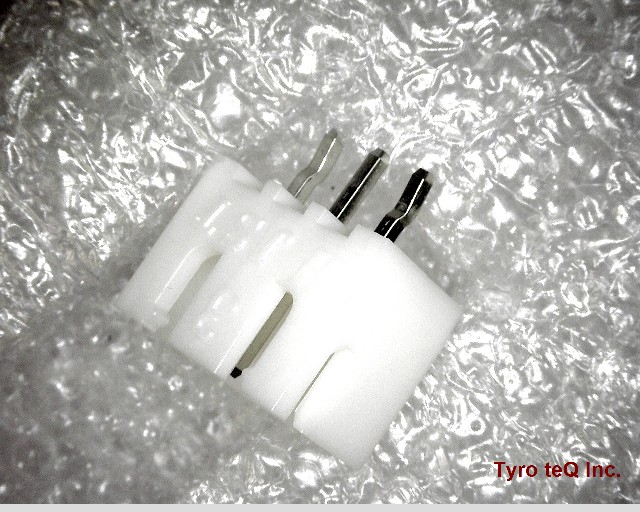

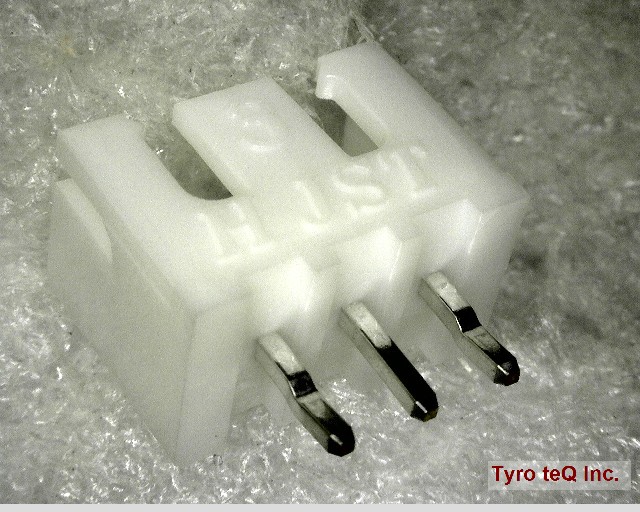

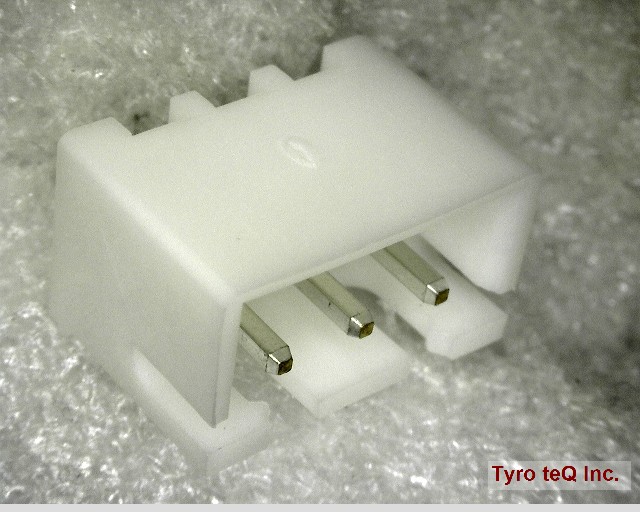

Name: B3B-XH-A(LF)(SN)
Brand: JST
SKU: 120091754-0000-0000-0000

B3B-XH-A(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

B3B-XH-A(LF)(SN) の詳細情報

型番	B3B-XH-A(LF)(SN)
メーカー	JST
データシート
Additional Feature	SHROUDED, TOP ENTRY
Body Breadth	0.226 inch
Body Depth	0.276 inch
Body Length	0.39 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn) - reflowed
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	TUV; UL
Terminal Length	0.134 inch
Terminal Pitch	2.5 mm
Termination Type	SOLDER
Total Number of Contacts	3
UL Flammability Code	94V-0
