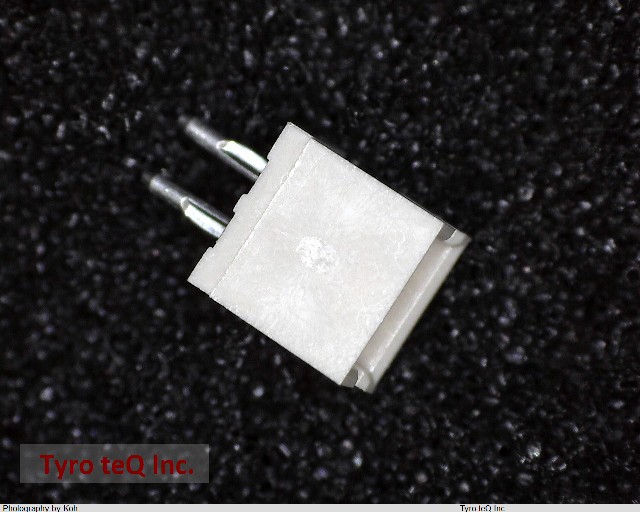

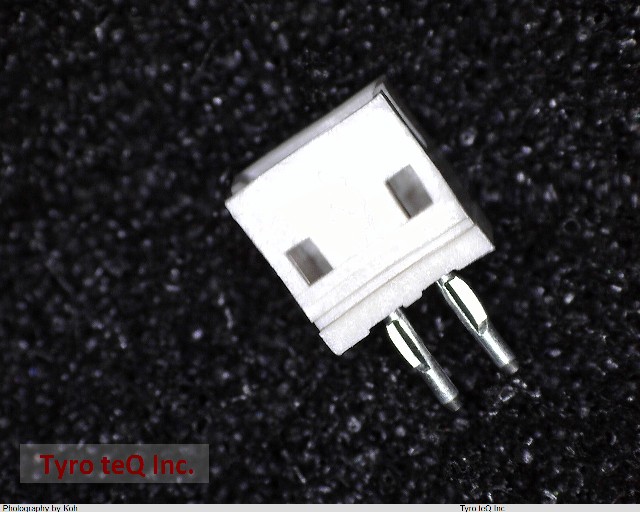

Name: B2B-ZR
Brand: JST
SKU: 120067578-0000-0000-0000

B2B-ZR - JST の商品詳細ページです。

２営業日以内に回答いたします

B2B-ZR の詳細情報

型番	B2B-ZR
メーカー	JST
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.138 inch
Body Depth	0.177 inch
Body Length	0.177 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN LEAD OVER COPPER
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYAMIDE
JESD-609 Code	e0
MIL Conformance	NO
Manufacturer Series	ZH
Mating Contact Pitch	0.059 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	GUIDE SLOT
Mounting Option 2	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.106 inch
Terminal Pitch	1.4986 mm
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
