B20B-PHDSS データシート

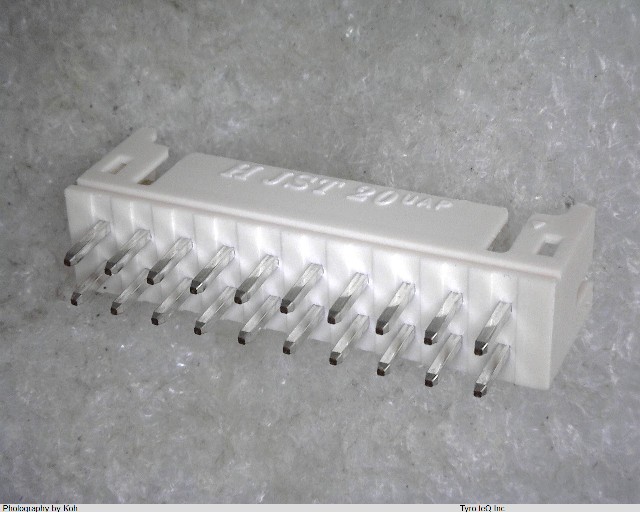

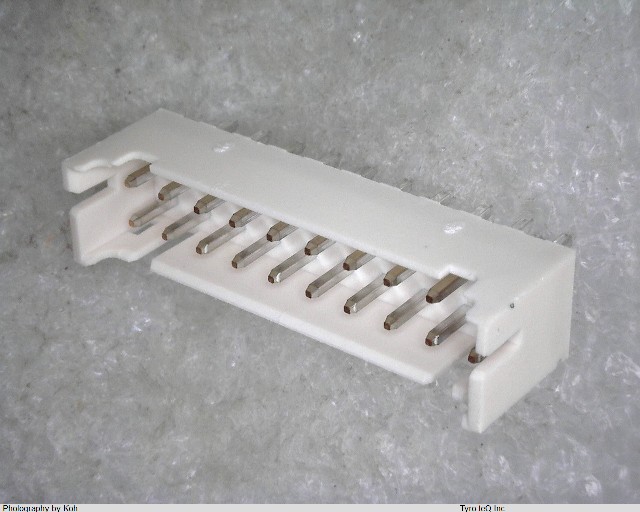

Name: B20B-PHDSS
Brand: JST
SKU: 120101728-0000-0000-0000

B20B-PHDSS - JST の商品詳細ページです。

２営業日以内に回答いたします

B20B-PHDSS の詳細情報

型番	B20B-PHDSS
メーカー	JST
データシート
Additional Feature	TOP ENTRY, LOW PROFILE
Body Breadth	0.197 inch
Body Depth	0.256 inch
Body Length	0.862 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	TIN OVER COPPER
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	PHD
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED KEY
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.118 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	20
UL Flammability Code	94V-0
