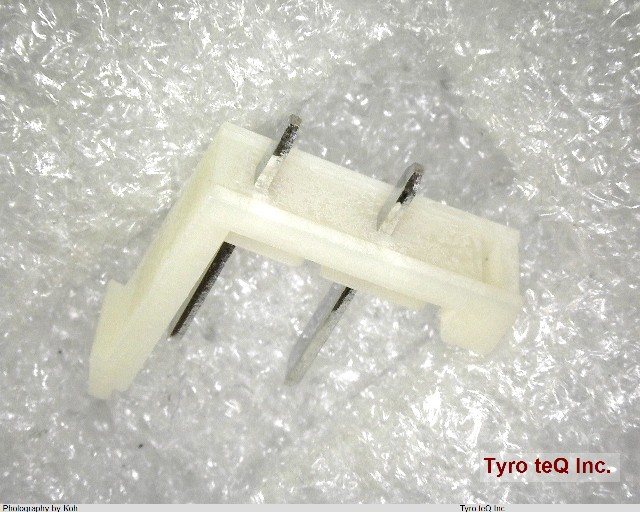

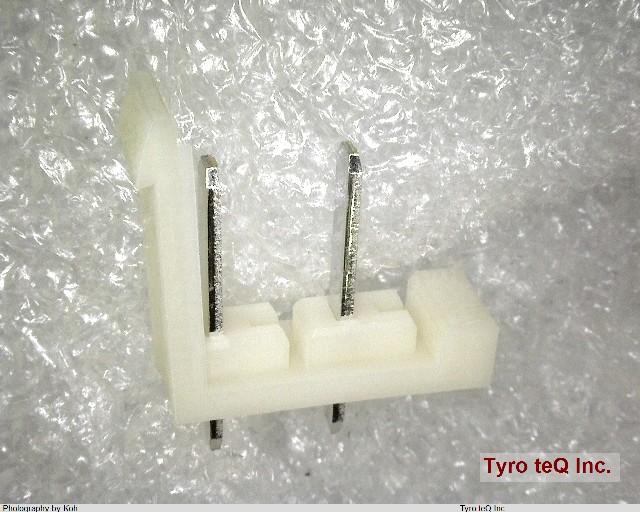

B02P-XL(LF)(SN) データシート

Name: B02P-XL(LF)(SN)
Brand: JST
SKU: 120188770-0000-0000-0000

B02P-XL(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

B02P-XL(LF)(SN) の詳細情報

型番	B02P-XL(LF)(SN)
メーカー	JST
データシート
Additional Feature	REFERENCE STANDARD: UL
Body Breadth	0.606 inch
Body Depth	0.575 inch
Body Length	0.197 inch
Connector Type	COMBINATION LINE CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	BRASS
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	BOARD
Number of Rows Loaded	2
Operating Temperature-Max	90 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	10 A
Reference Standard	CSA; TUV
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
