B02B-XASK-1-A(LF)(SN) データシート

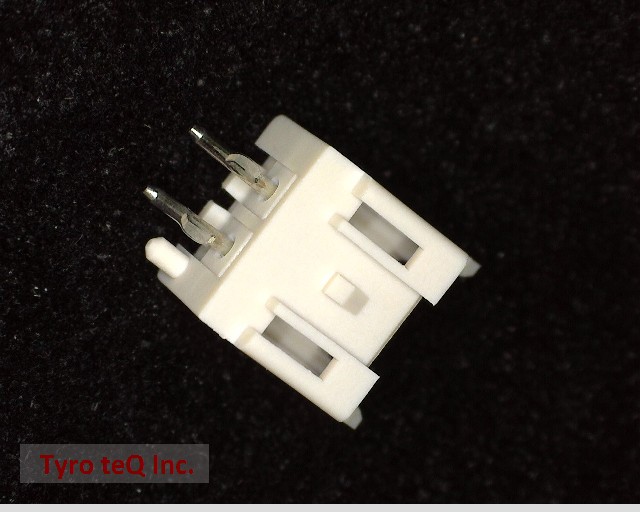

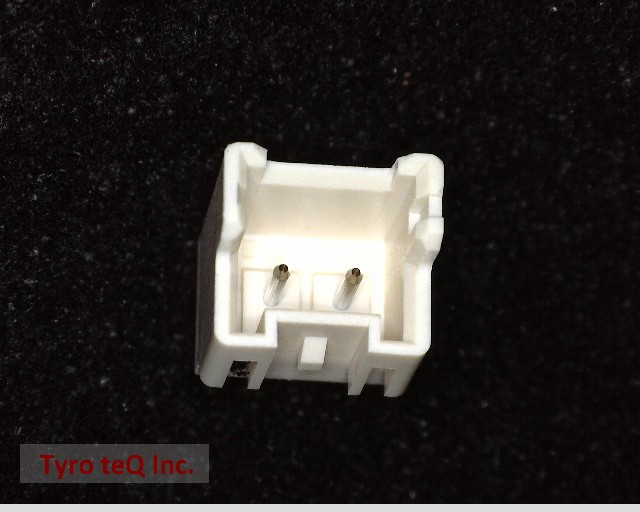

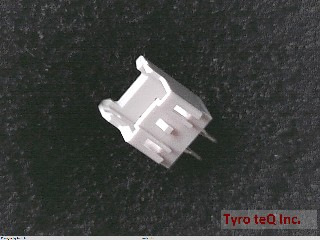

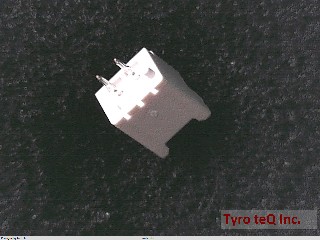

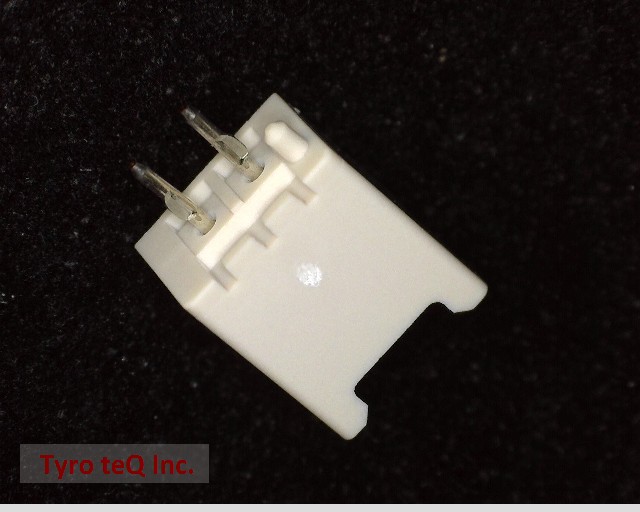

Name: B02B-XASK-1-A(LF)(SN)
Brand: JST
SKU: 120185429-0000-0000-0000

B02B-XASK-1-A(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

B02B-XASK-1-A(LF)(SN) の詳細情報

型番	B02B-XASK-1-A(LF)(SN)
メーカー	JST
データシート
Additional Feature	TOP ENTRY, SHROUDED
Body Breadth	0.252 inch
Body Depth	0.346 inch
Body Length	0.295 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	GLASS FILLED POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	3 A
Reference Standard	CSA;TUV;UL
Terminal Length	0.134 inch
Terminal Pitch	2.5 mm
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
