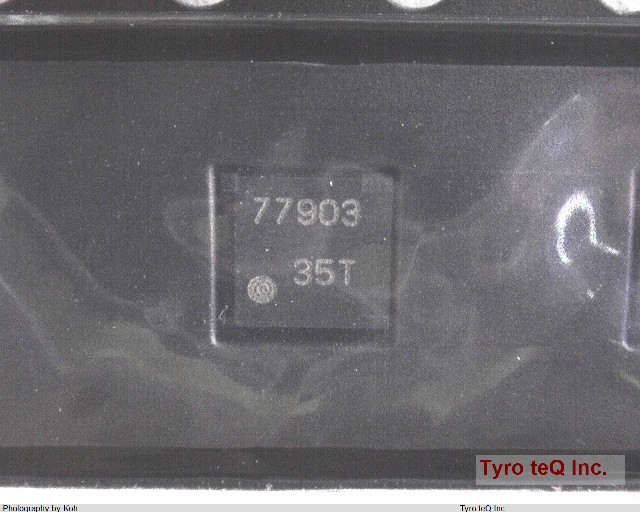

NJU77903KW2

Name: NJU77903KW2
Brand: JRC
SKU: 400038348-0000-0000-0000

NJU77903KW2 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU77903KW2 の詳細情報

型番	NJU77903KW2
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Common-mode Reject Ratio-Nom	80 dB
Input Offset Voltage-Max	8000 uV
JESD-30 Code	S-PDSO-N8
Length	3 mm
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Seated Height-Max	0.75 mm
Slew Rate-Nom	4 V/us
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	3 mm
