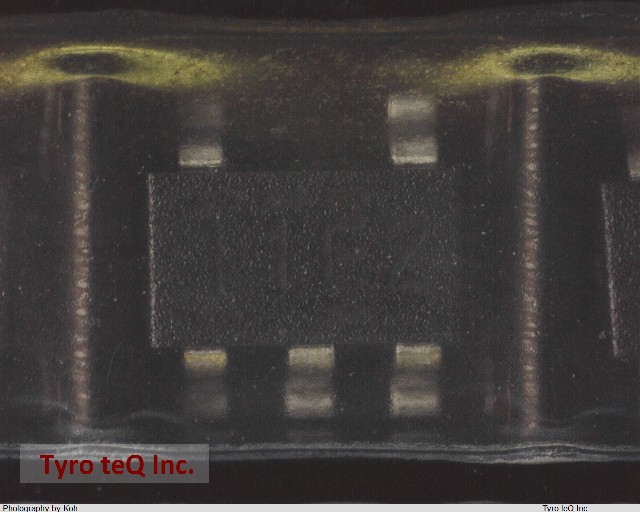

NJU77701F

Name: NJU77701F
Brand: JRC
SKU: 240123275-0000-0000-0000

NJU77701F - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU77701F の詳細情報

型番	NJU77701F
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	92 dB
Input Offset Voltage-Max	1800 uV
JESD-30 Code	R-PDSO-G5
Length	2.9 mm
Low-Offset	NO
Micropower	NO
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Seated Height-Max	1.3 mm
Slew Rate-Min	18 V/us
Slew Rate-Nom	35 V/us
Sub Category	Operational Amplifier
Supply Current-Max	4.5 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Unity Gain BW-Nom	34000 kHz
Voltage Gain-Min	125892
Width	1.6 mm
