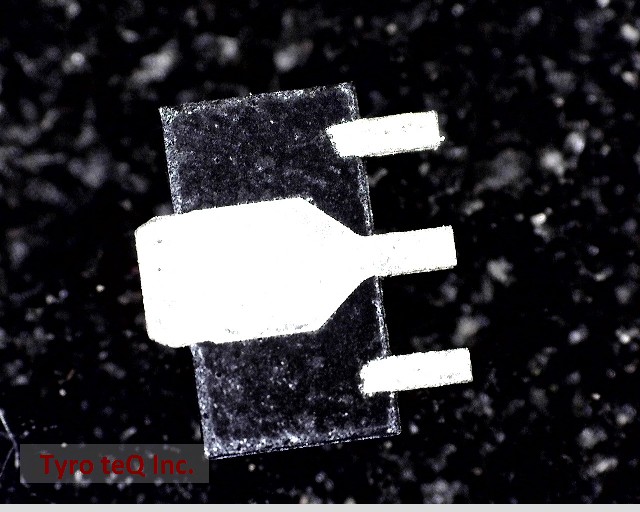

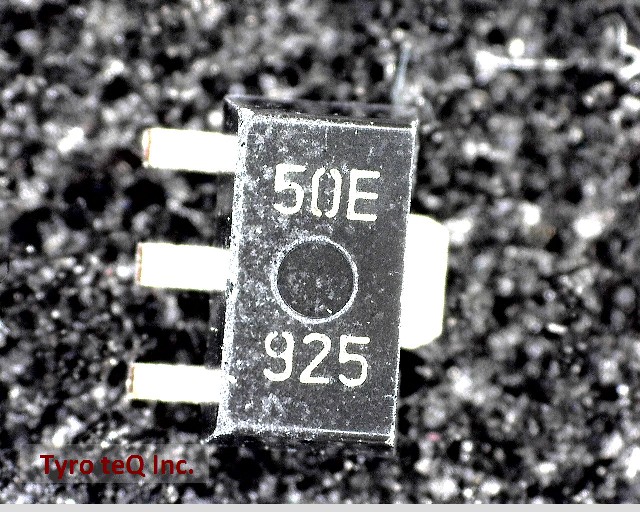

NJU7221U50

Name: NJU7221U50
Brand: JRC
SKU: 240060127-0000-0000-0000

NJU7221U50 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU7221U50 の詳細情報

型番	NJU7221U50
メーカー	JRC
Adjustability	FIXED
Dropout Voltage1-Max	0.6 V
Dropout Voltage1-Nom	0.3 V
Input Voltage Absolute-Max	14 V
Input Voltage-Max	12 V
Input Voltage-Min	6 V
JESD-30 Code	R-PSSO-F3
JESD-609 Code	e6
Length	4.5 mm
Load Regulation-Max	0.12 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-25 Cel
Output Current1-Max	0.04 A
Output Voltage1-Max	5.1 V
Output Voltage1-Min	4.9 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	TO-243
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.65 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	TIN BISMUTH
Terminal Form	FLAT
Terminal Pitch	1.5 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	2 %
Width	2.5 mm
