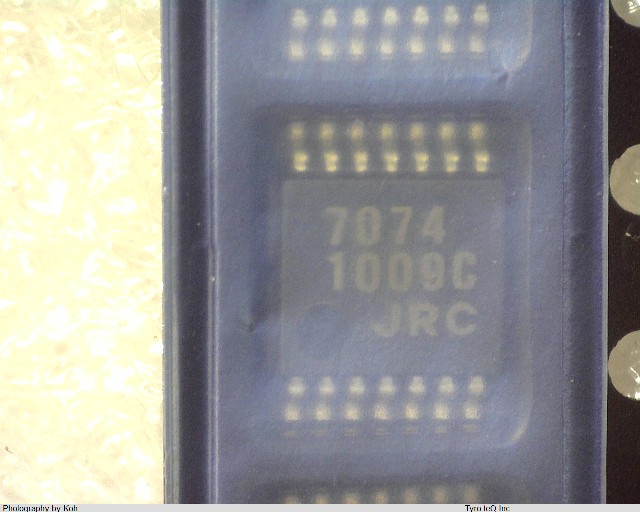

NJU7074V

Name: NJU7074V
Brand: JRC
SKU: 240009362-0000-0000-0000

NJU7074V - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU7074V の詳細情報

型番	NJU7074V
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Nom	75 dB
Frequency Compensation	YES
Input Offset Voltage-Max	2000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e6
Length	5 mm
Low-Bias	YES
Low-Offset	NO
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Power Supplies	10 V
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Slew Rate-Nom	1.1 V/us
Sub Category	Operational Amplifier
Supply Current-Max	4.8 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	10 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Unity Gain BW-Nom	1000 kHz
Voltage Gain-Min	10000
Width	4.4 mm
