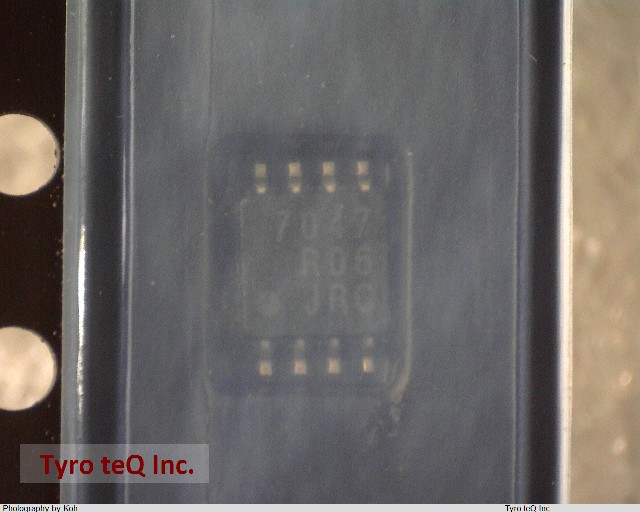

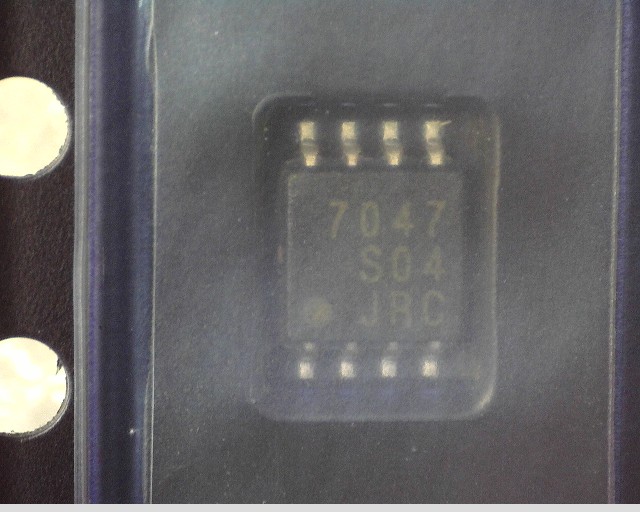

NJU7047RB1

Name: NJU7047RB1
Brand: JRC
SKU: 240118153-0000-0000-0000

NJU7047RB1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU7047RB1 の詳細情報

型番	NJU7047RB1
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Min	60 dB
Common-mode Reject Ratio-Nom	80 dB
Frequency Compensation	YES
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G8
Length	2.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Power	NO
Power Supplies	3/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Screening Level	AEC-Q100
Seated Height-Max	1 mm
Slew Rate-Min	3.5 V/us
Slew Rate-Nom	7 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.2 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Unity Gain BW-Nom	5000 kHz
Voltage Gain-Min	31620
Wideband	NO
Width	2.8 mm
