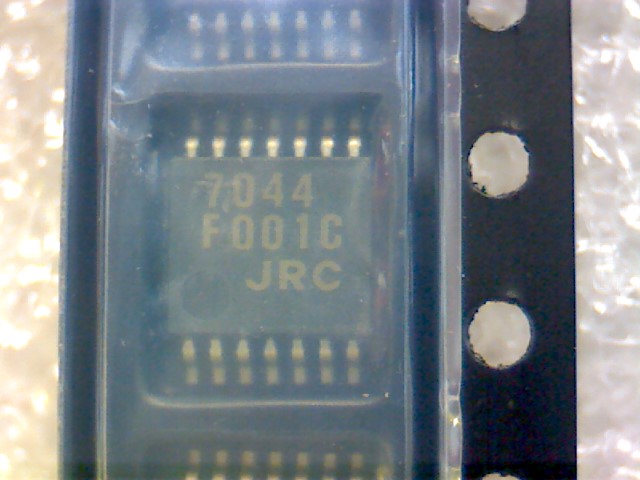

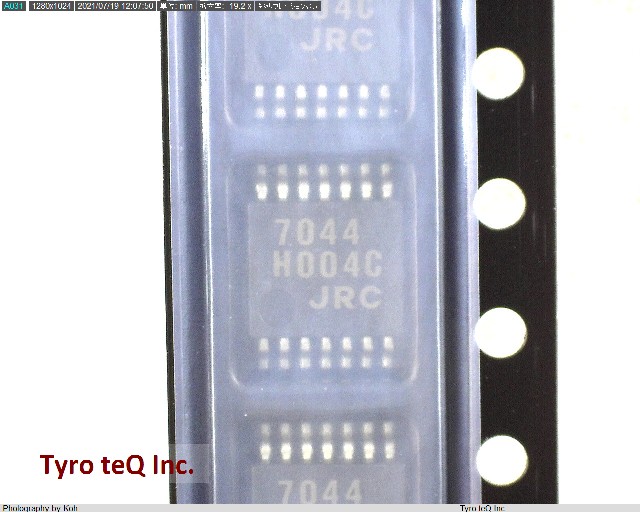

NJU7044V-TE1

Name: NJU7044V-TE1
Brand: JRC
SKU: 240121953-0000-0000-0000

NJU7044V-TE1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU7044V-TE1 の詳細情報

型番	NJU7044V-TE1
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Nom	60 dB
Frequency Compensation	YES
Input Offset Voltage-Max	10000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	5 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	2
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Slew Rate-Nom	0.7 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.8 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Unity Gain BW-Nom	800 kHz
Voltage Gain-Min	3160
Width	4.4 mm
