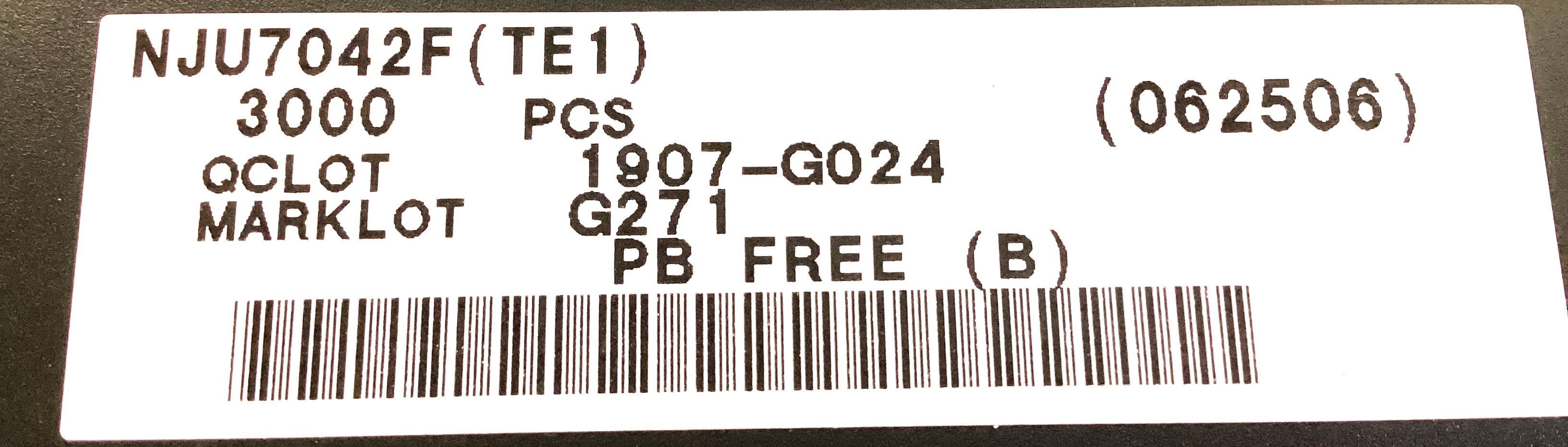

NJU7042F-TE1

Name: NJU7042F-TE1
Brand: JRC
SKU: 240009352-0000-0000-0000

NJU7042F-TE1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU7042F-TE1 の詳細情報

型番	NJU7042F-TE1
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Nom	70 dB
Frequency Compensation	YES
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	2.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter

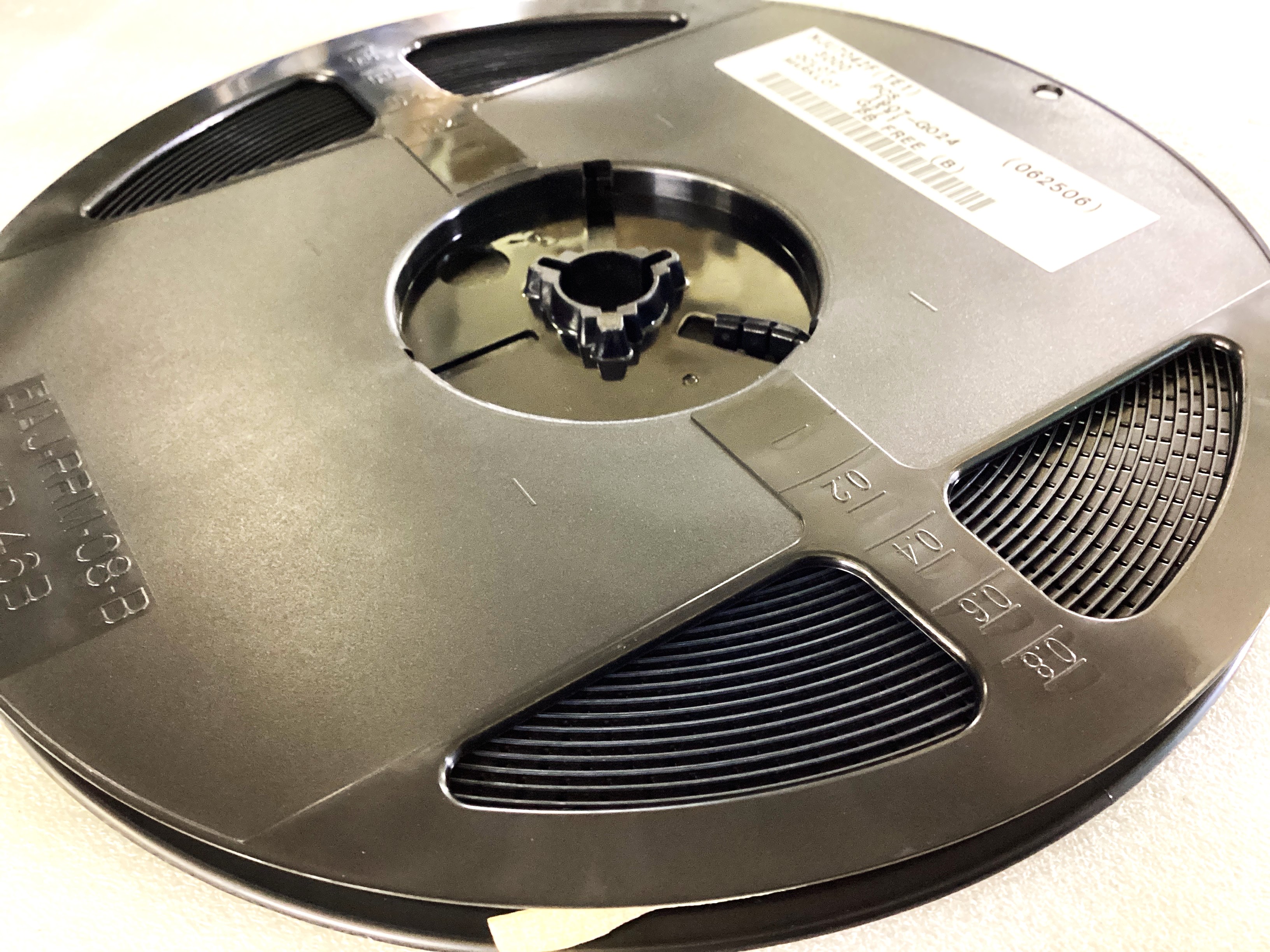

Packing Method	TAPE AND REEL
Power	NO
Power Supplies	3 V
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Slew Rate-Nom	0.03 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.03 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Unity Gain BW-Nom	47 kHz
Voltage Gain-Min	1000
Wideband	NO
Width	1.6 mm
