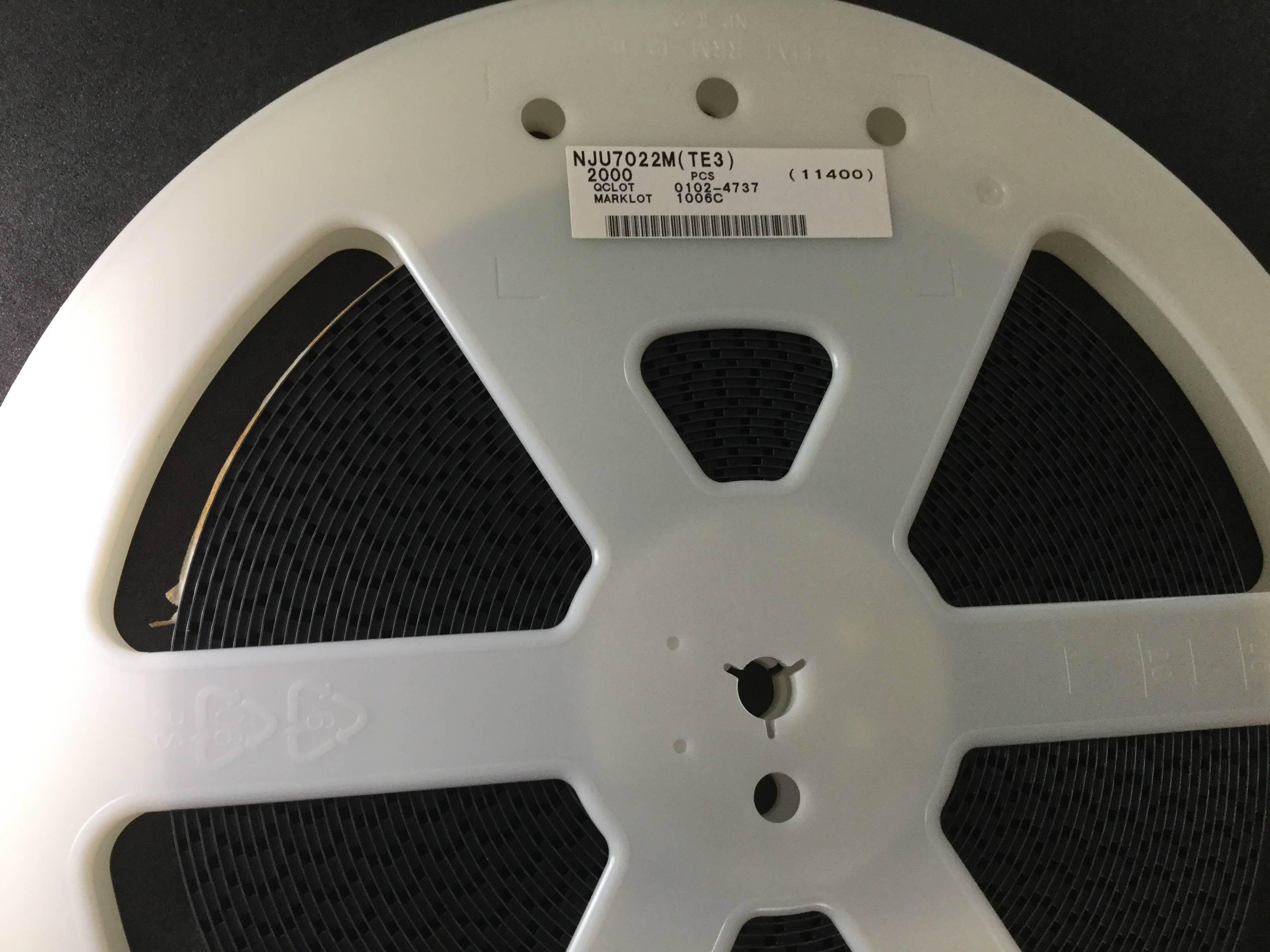

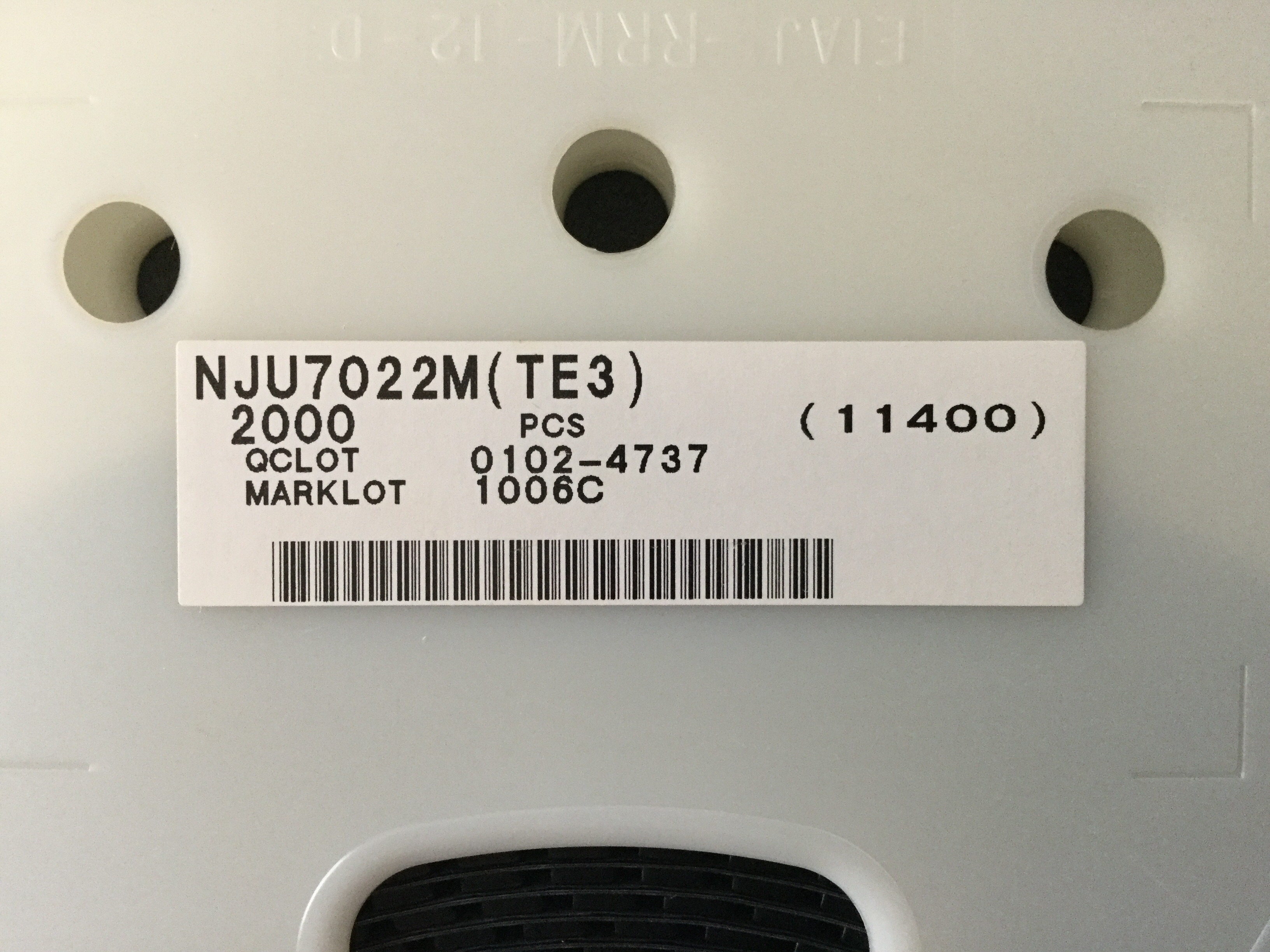

NJU7022M

Name: NJU7022M
Brand: JRC
SKU: 240002856-0000-0000-0000

NJU7022M - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU7022M の詳細情報

型番	NJU7022M
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	1.0E-6 uA
Common-mode Reject Ratio-Min	60 dB
Common-mode Reject Ratio-Nom	75 dB
Frequency Compensation	YES
Input Offset Voltage-Max	10000 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e6
Length	5 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	10 V
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Slew Rate-Nom	0.4 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.6 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	10 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Unity Gain BW-Nom	400 kHz
Voltage Gain-Min	10000
Width	5 mm
