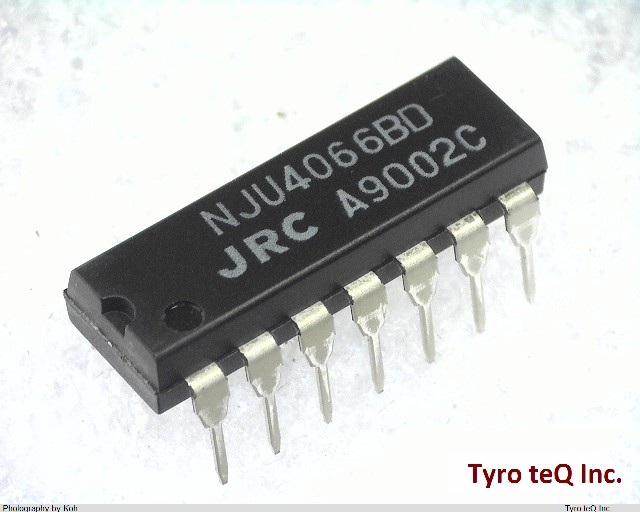

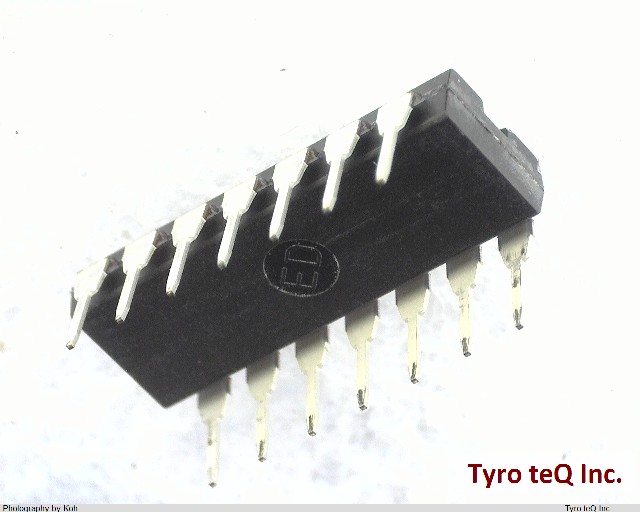

NJU4066BD データシート

Name: NJU4066BD
Brand: JRC
SKU: 240009170-0000-0000-0000

NJU4066BD - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU4066BD の詳細情報

型番	NJU4066BD
メーカー	JRC
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e6
Length	19 mm
Normal Position	NO V
Number of Channels	1
Number of Functions	4
Number of Terminals	14
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	15 ohm
On-state Resistance-Max (Ron)	1050 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	4.7 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Switch-off Time-Max	70 ns
Switch-on Time-Max	70 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
