NJU4053BM データシート

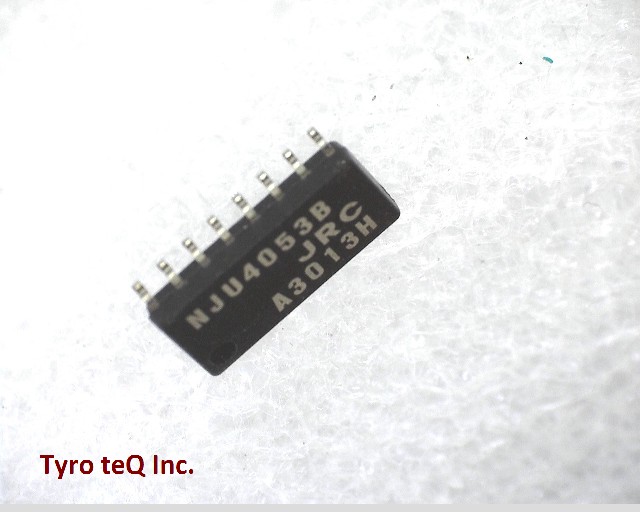

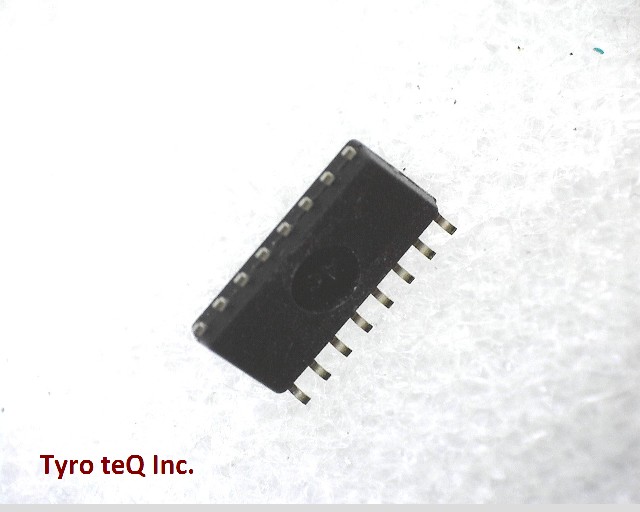

Name: NJU4053BM
Brand: JRC
SKU: 240000204-0000-0000-0000

NJU4053BM - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJU4053BM の詳細情報

型番	NJU4053BM
メーカー	JRC
データシート
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e6
Length	10 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	3
Number of Terminals	16
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	160 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Signal Current-Max	0.01 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.6 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	20 ns
Switch-on Time-Max	20 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5 mm
