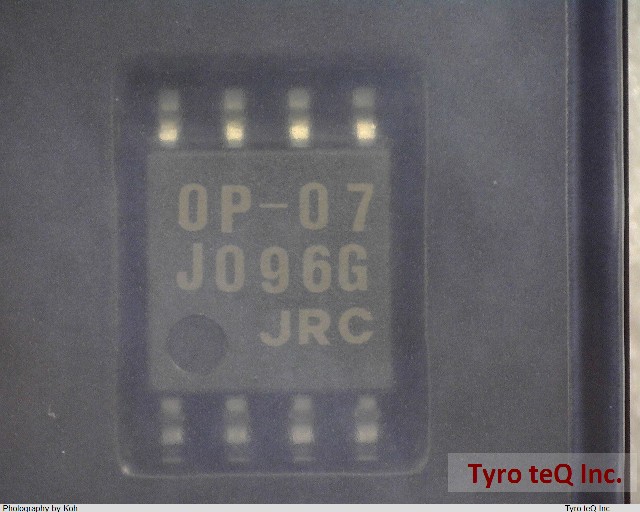

NJMOP07M-TE2 Jrc

NJMOP07M-TE2 - JRC の商品詳細ページです。

1
NJMOP07M-TE2
  • NJMOP07M-TE2
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NJMOP07M-TE2 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NJMOP07M-TE2
メーカーJRC
Amplifier Type OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB) 0.009 uA
Common-mode Reject Ratio-Min 100 dB
Common-mode Reject Ratio-Nom 120 dB
Input Offset Voltage-Max 250 uV
JESD-30 Code S-PDSO-G8
JESD-609 Code e6
Length 5 mm
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 75 Cel
Operating Temperature-Min -20 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape SQUARE
Package Style SMALL OUTLINE Meter
Qualification Status Not Qualified
Seated Height-Max 2 mm
Slew Rate-Nom 0.17 V/us
Sub Category Operational Amplifier
Supply Current-Max 5 mA
Supply Voltage Limit-Max 22 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN BISMUTH
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Unity Gain BW-Nom 500 kHz
Voltage Gain-Min 100000
Width 5 mm
会社名称日本無線株式会社
設立1915年12月
資本金14,704百万円
所在地164-8570 東京都中野区中野4丁目10-1
URLhttp://www.jrc.co.jp/
