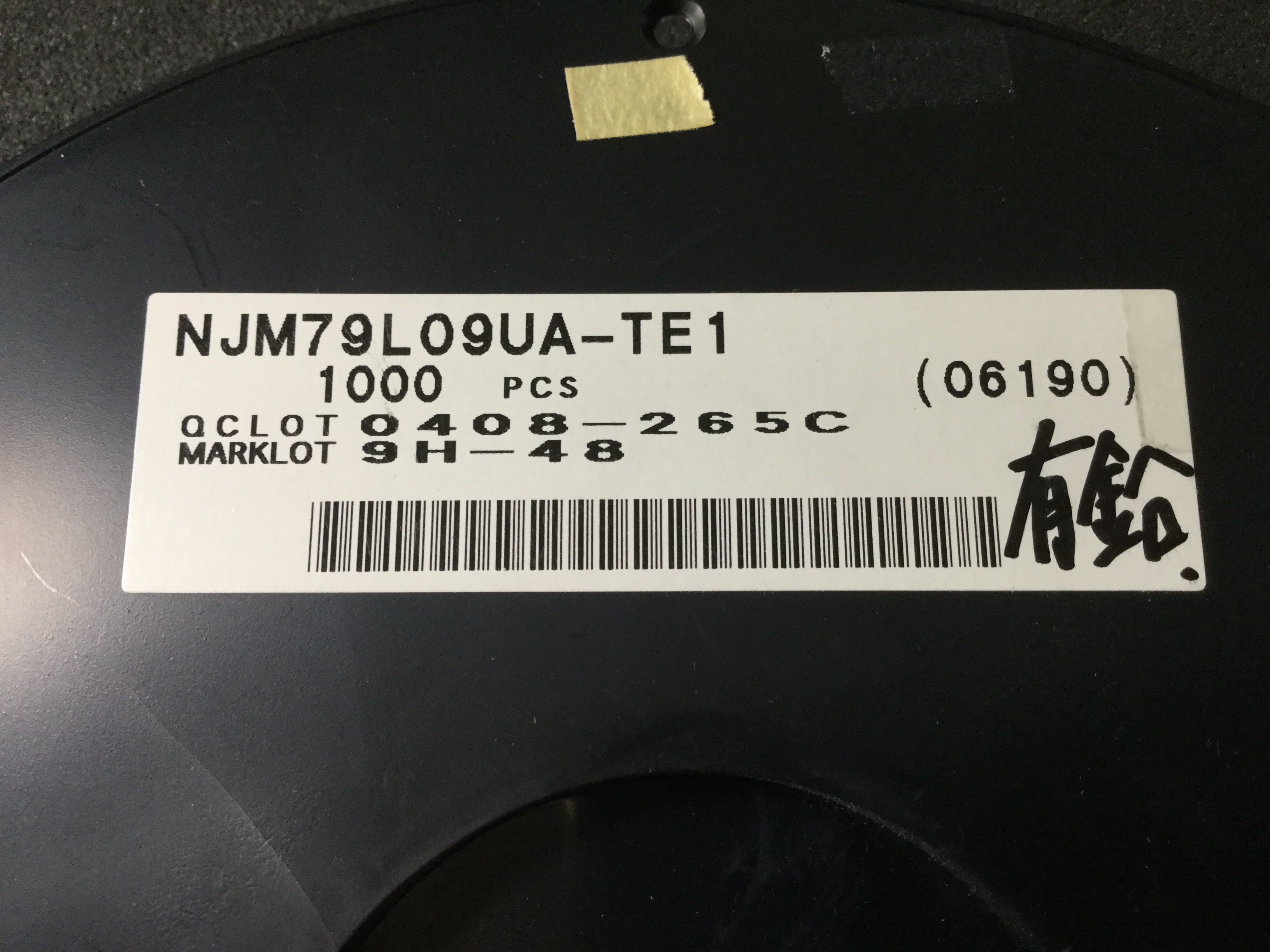

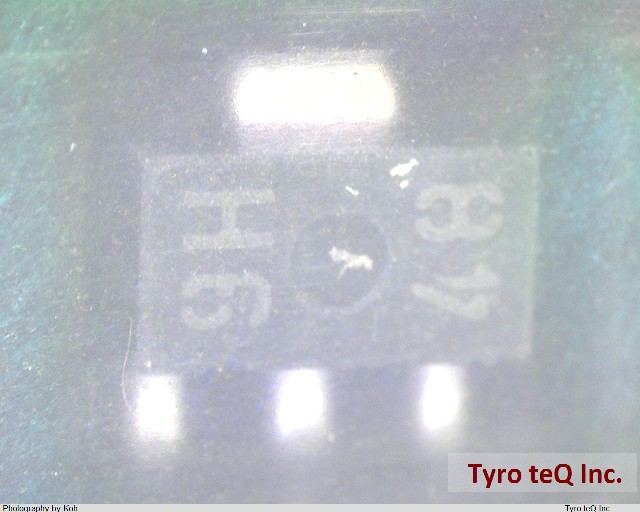

NJM79L09UA-TE1

Name: NJM79L09UA-TE1
Brand: JRC
SKU: 240001432-0000-0000-0000

NJM79L09UA-TE1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM79L09UA-TE1 の詳細情報

型番	NJM79L09UA-TE1
メーカー	JRC
Adjustability	FIXED
Dropout Voltage1-Nom	2.5 V
Input Voltage Absolute-Max	30 V
Input Voltage-Max	24 V
Input Voltage-Min	11.5 V
JESD-30 Code	R-PSSO-F3
JESD-609 Code	e6
Length	4.5 mm
Line Regulation-Max	0.2 %
Load Regulation-Max	0.09 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.1 A
Output Voltage1-Max	9.36 V
Output Voltage1-Min	8.64 V
Output Voltage1-Nom	9 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	TO-243
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.65 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	FLAT
Terminal Pitch	1.5 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	4 %
Width	2.5 mm
