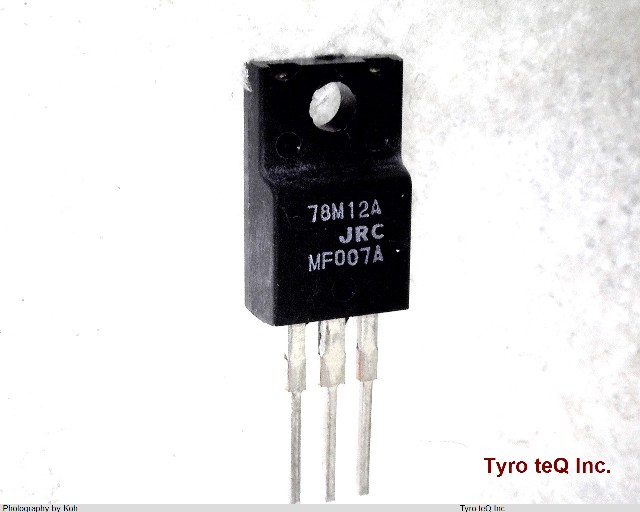

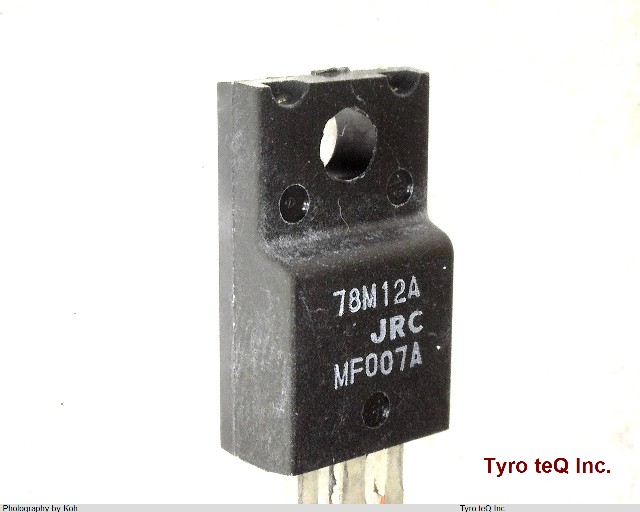

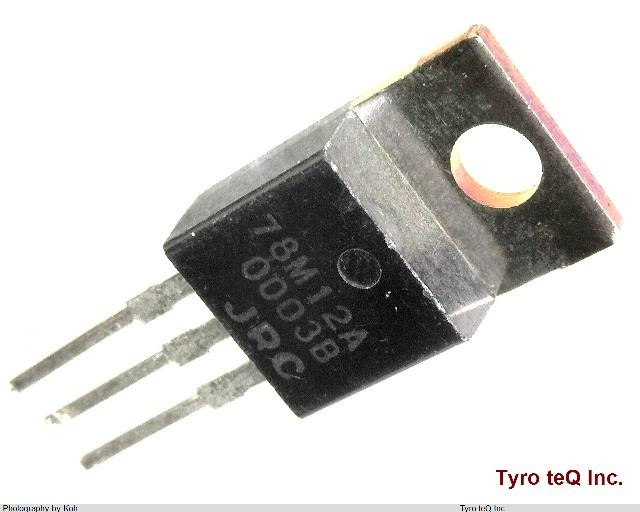

NJM78M12A

Name: NJM78M12A
Brand: JRC
SKU: 240039971-0000-0000-0000

NJM78M12A - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM78M12A の詳細情報

型番	NJM78M12A
メーカー	JRC
Adjustability	FIXED
Dropout Voltage1-Nom	3 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	30 V
Input Voltage-Min	14.5 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e6
Line Regulation-Max	0.06 %
Load Regulation-Max	0.08 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-30 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	12.5 V
Output Voltage1-Min	11.5 V
Output Voltage1-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	4 %
