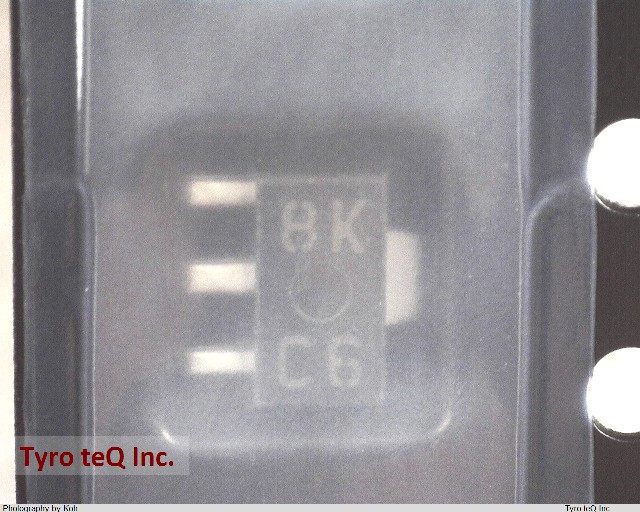

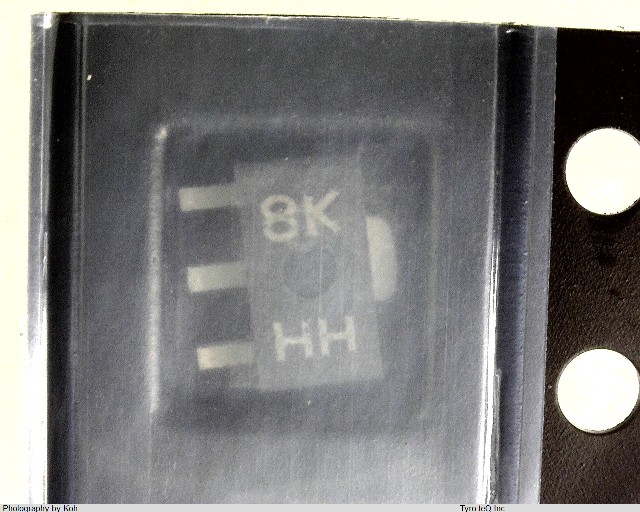

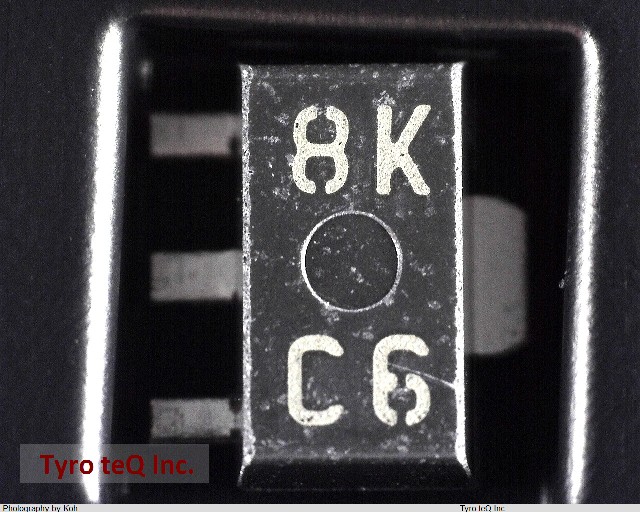

NJM78L12UA-TE1

Name: NJM78L12UA-TE1
Brand: JRC
SKU: 240009028-0000-0000-0000

NJM78L12UA-TE1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM78L12UA-TE1 の詳細情報

型番	NJM78L12UA-TE1
メーカー	JRC
Adjustability	FIXED
Input Voltage Absolute-Max	35 V
Input Voltage-Max	27 V
Input Voltage-Min	14.5 V
JESD-30 Code	R-PSSO-F3
JESD-609 Code	e6
Length	4.5 mm
Line Regulation-Max	0.25 %
Load Regulation-Max	0.1 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.1 A
Output Voltage1-Max	12.6 V
Output Voltage1-Min	11.4 V
Output Voltage1-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	TO-243
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	FLAT
Terminal Pitch	1.5 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	5 %
Width	2.5 mm
