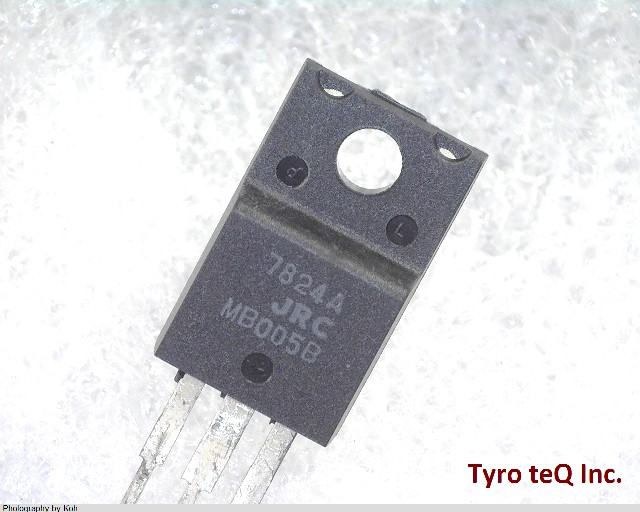

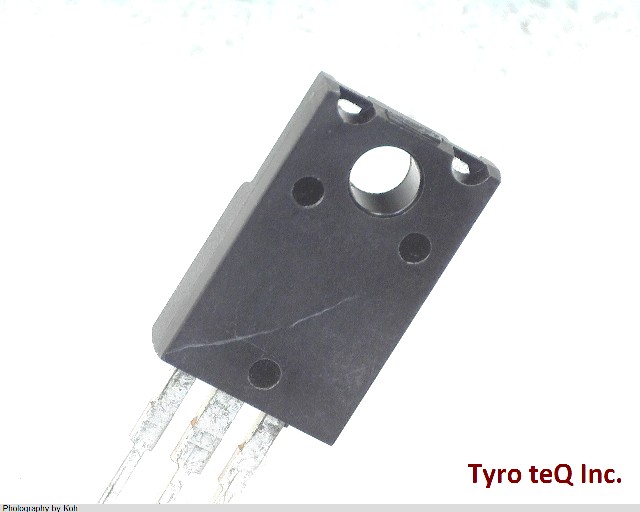

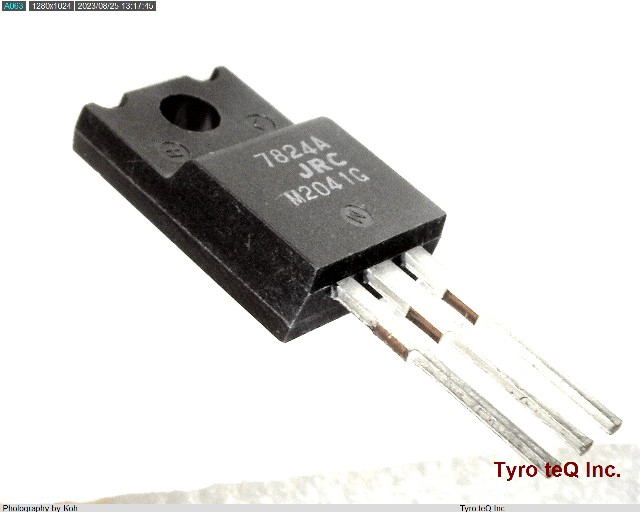

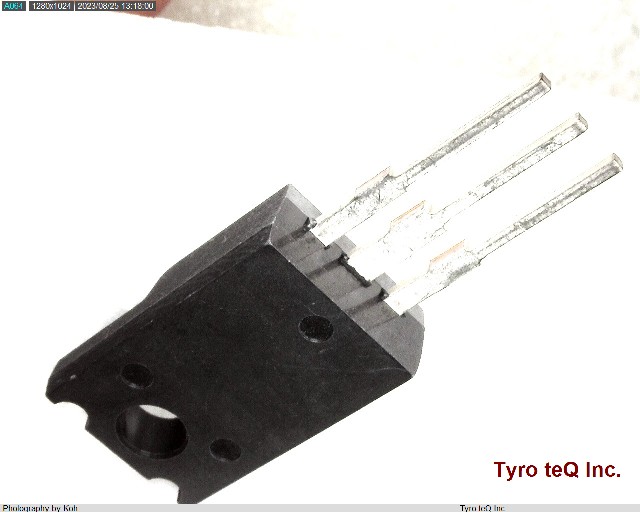

NJM7824FA データシート

Name: NJM7824FA
Brand: JRC
SKU: 240039488-0000-0000-0000

NJM7824FA - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM7824FA の詳細情報

型番	NJM7824FA
メーカー	JRC
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	3 V
Input Voltage Absolute-Max	40 V
Input Voltage-Max	38 V
Input Voltage-Min	27 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e6
Line Regulation-Max	0.24 %
Load Regulation-Max	0.24 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	1.5 A
Output Voltage1-Max	25 V
Output Voltage1-Min	23 V
Output Voltage1-Nom	24 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-220
Package Equivalence Code	SIP3,.1
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	4.17 %
