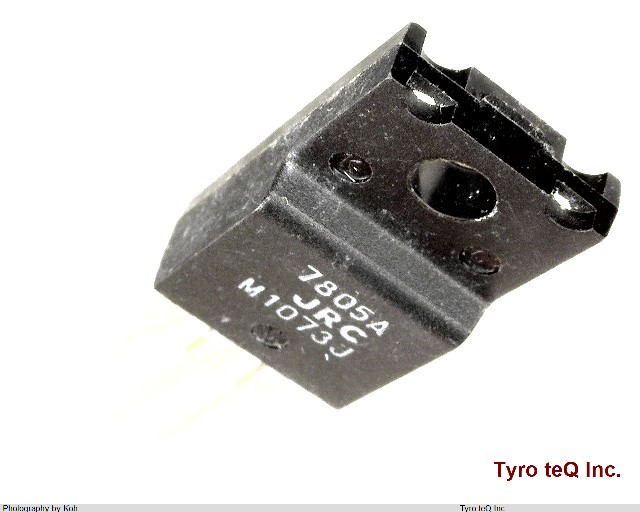

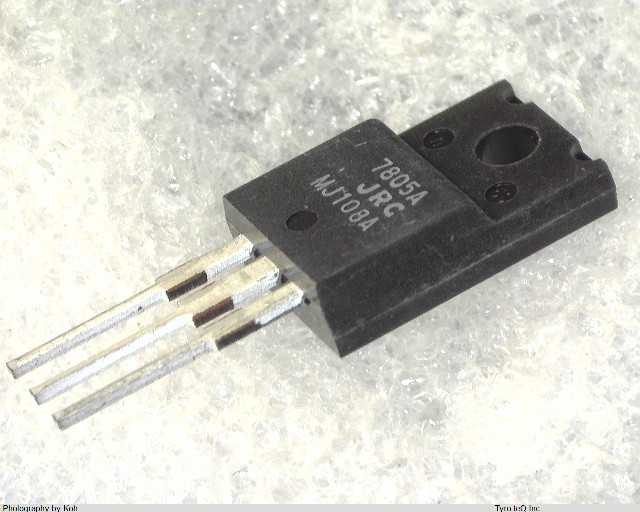

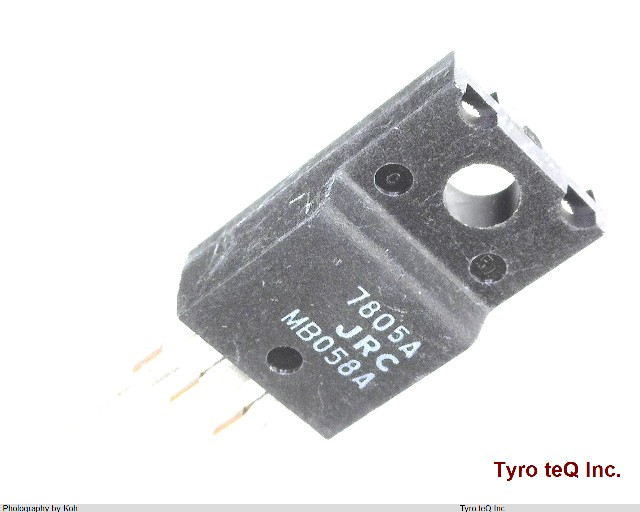

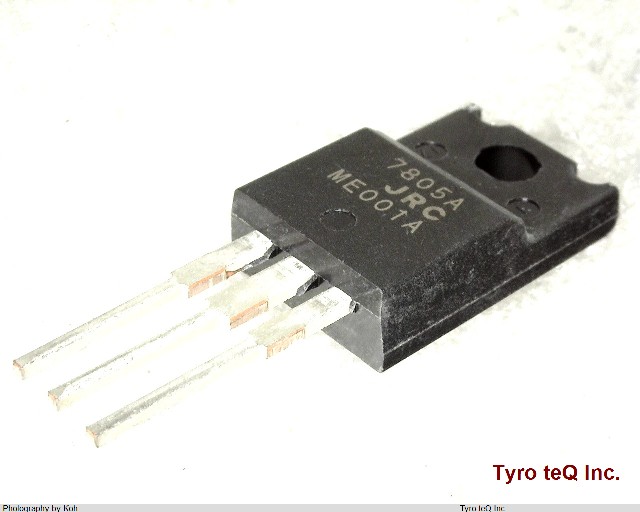

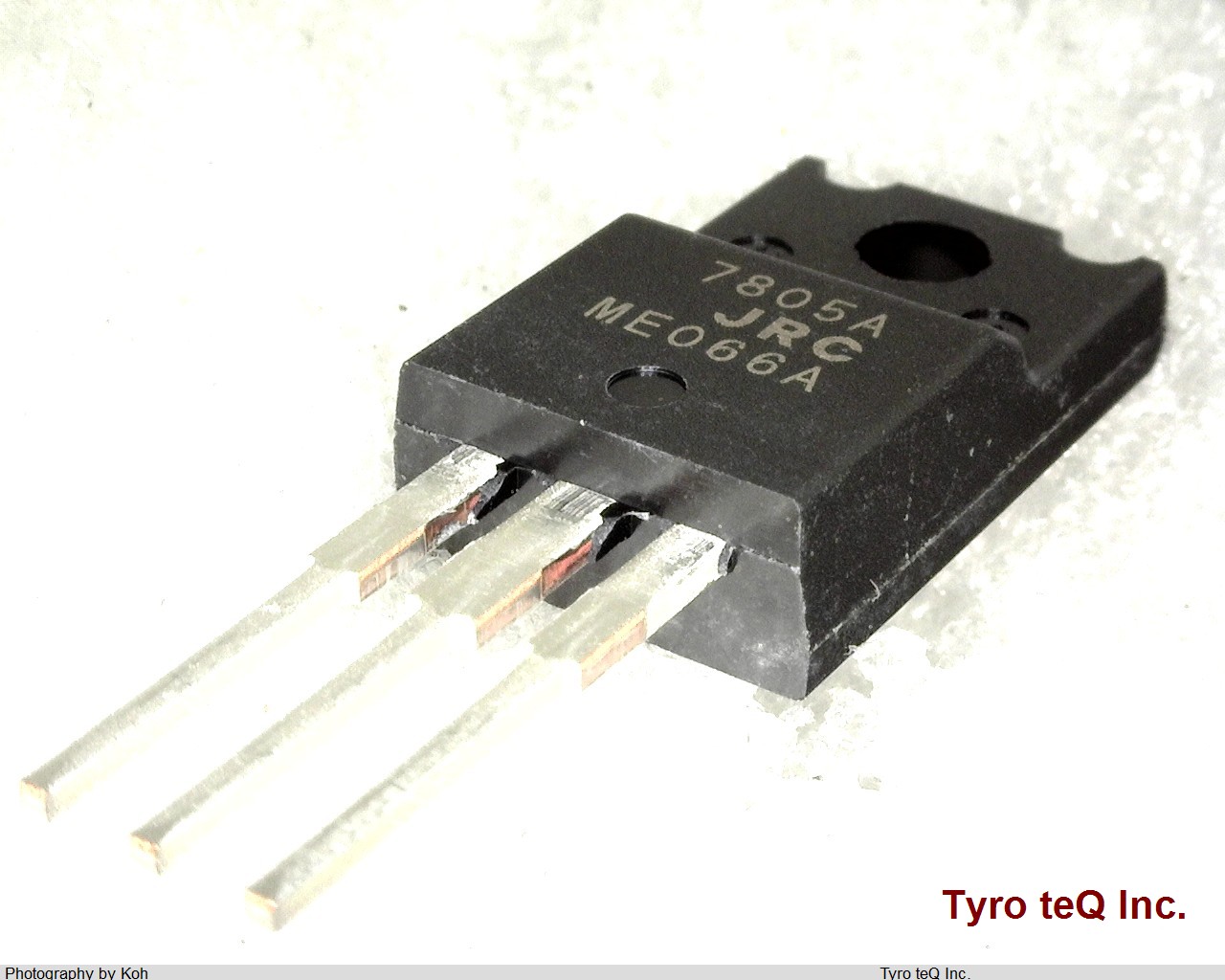

NJM7805FA データシート

Name: NJM7805FA
Brand: JRC
SKU: 240000490-0000-0000-0000

NJM7805FA - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM7805FA の詳細情報

型番	NJM7805FA
メーカー	JRC
データシート
Adjustability	FIXED
Input Voltage Absolute-Max	35 V
Input Voltage-Max	25 V
Input Voltage-Min	7 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e6
Line Regulation-Max	0.05 %
Load Regulation-Max	0.08 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-30 Cel
Output Current1-Max	1.5 A
Output Voltage1-Max	5.2 V
Output Voltage1-Min	4.8 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-220
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	4 %
