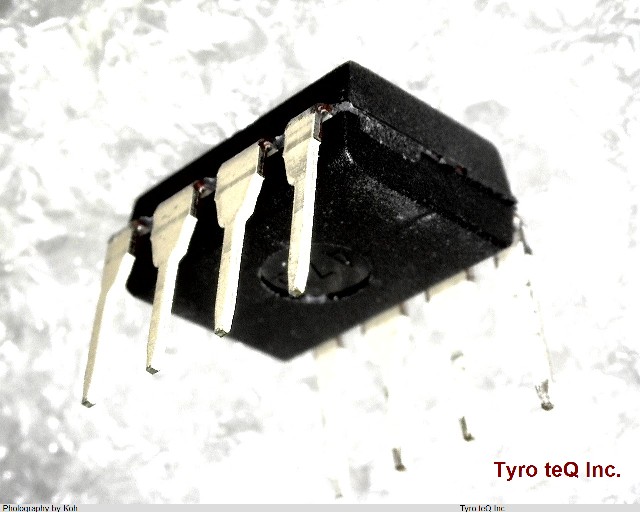

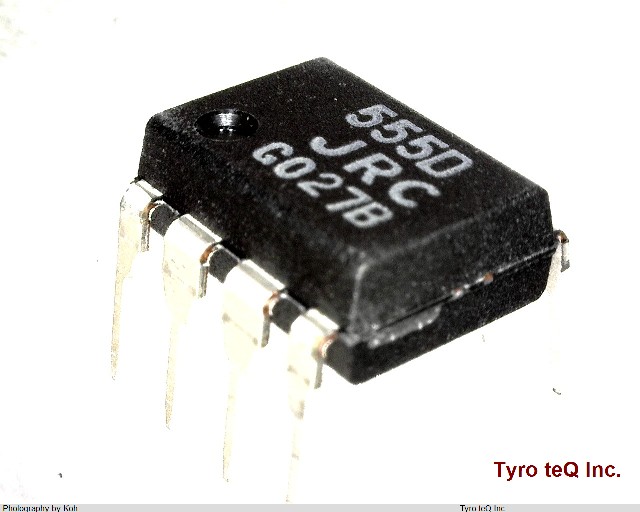

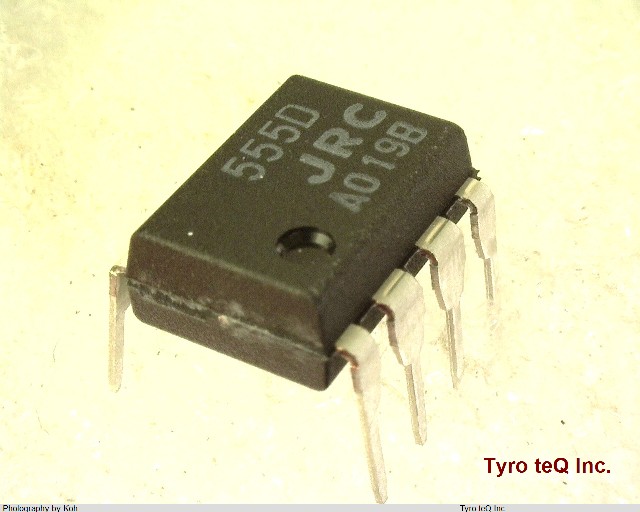

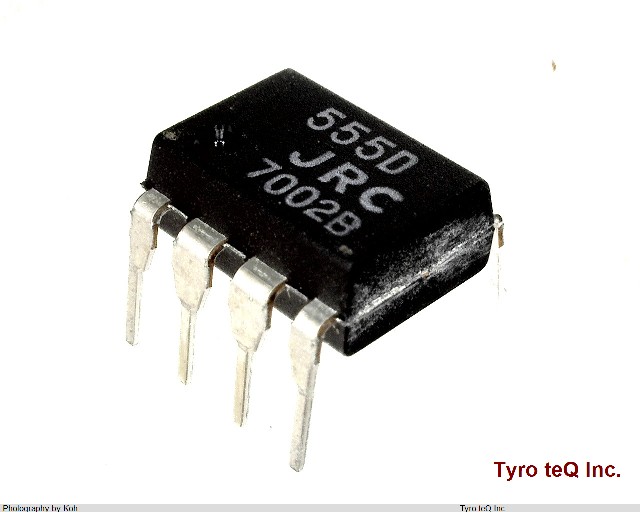

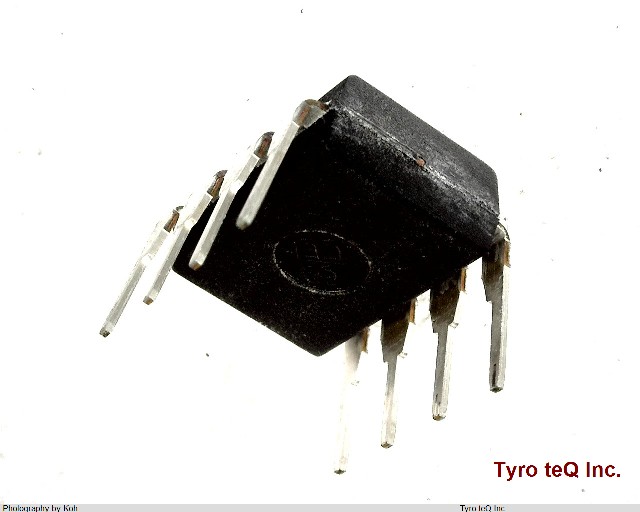

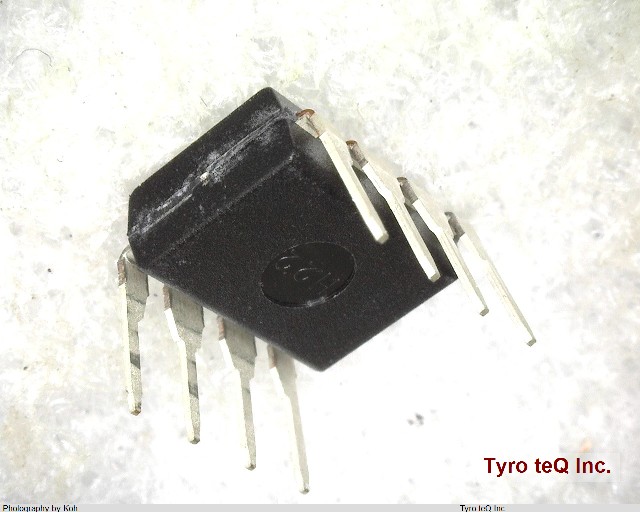

NJM555D データシート

Name: NJM555D
Brand: JRC
SKU: 240008929-0000-0000-0000

NJM555D - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM555D の詳細情報

型番	NJM555D
メーカー	JRC
データシート
Analog IC - Other Type	PULSE; RECTANGULAR
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e6
Length	8.8 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	4.7 mm
Sub Category	Analog Waveform Generation Functions
Supply Voltage-Max (Vsup)	16 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
