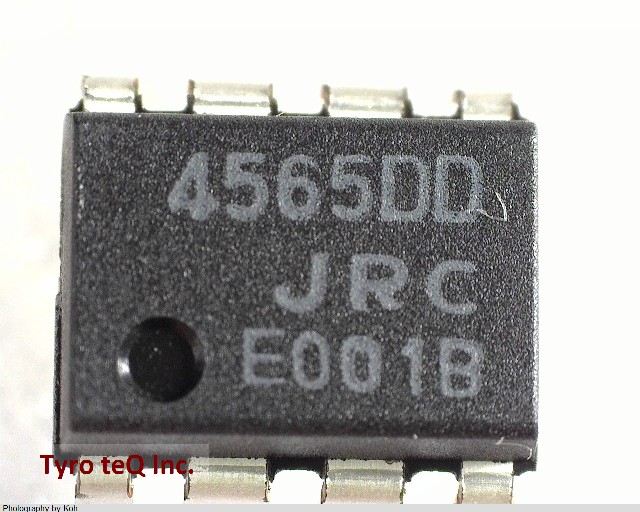

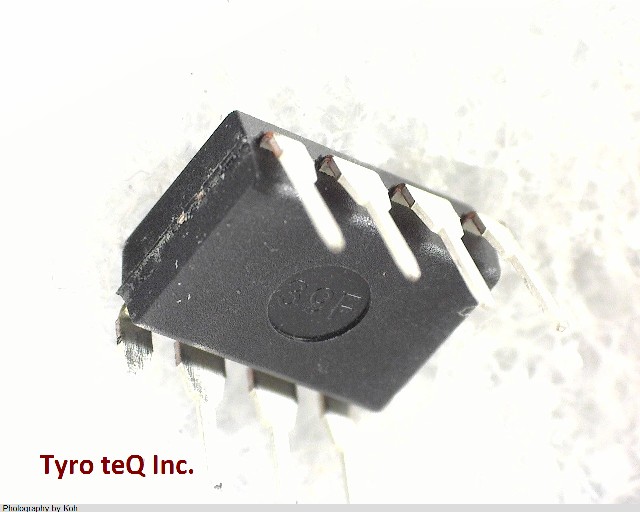

NJM4565DD
1
-
- 個
２営業日以内に回答いたします
NJM4565DD の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | NJM4565DD |
|---|---|
| メーカー | JRC |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Bias Current-Max (IIB) @25C | 0.2 uA |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 3000 uV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Low-Offset | NO |
| Moisture Sensitivity Level | 2 |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -20 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | +-15 V |
| Qualification Status | Not Qualified |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 7 mA |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Voltage Gain-Min | 20000 |
| 会社名称 | 日本無線株式会社 |
|---|---|
| 設立 | 1915年12月 |
| 資本金 | 14,704百万円 |
| 所在地 | 164-8570 東京都中野区中野4丁目10-1 |
| URL | http://www.jrc.co.jp/ |
