NJM4558M Jrc

NJM4558M - JRC の商品詳細ページです。

1

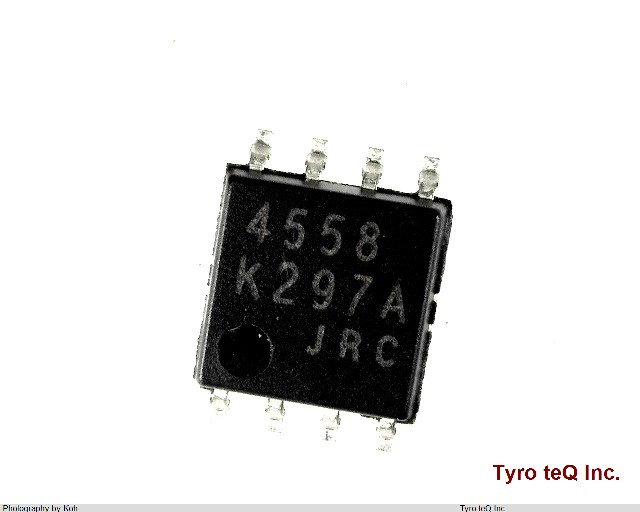

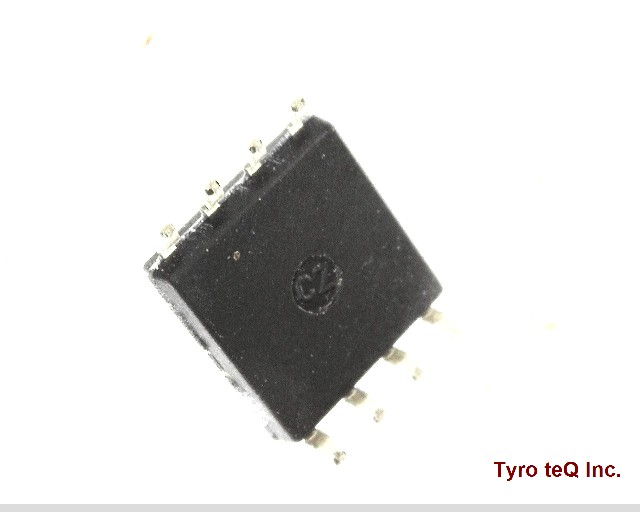

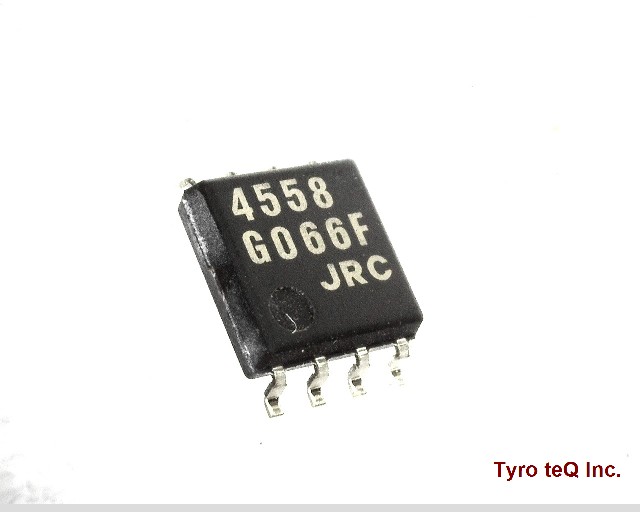

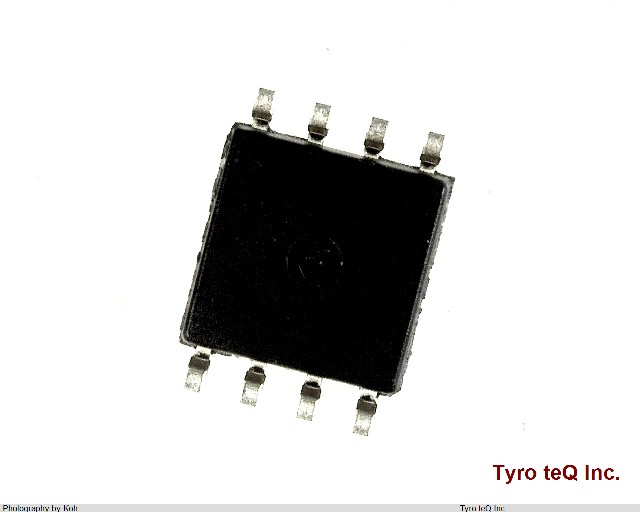

NJM4558M
  • NJM4558M
  • NJM4558M
  • NJM4558M
  • NJM4558M
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NJM4558M の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NJM4558M
メーカーJRC
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.5 uA
Bias Current-Max (IIB) @25C 0.5 uA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 90 dB
Frequency Compensation YES
Input Offset Voltage-Max 6000 uV
JESD-30 Code S-PDSO-G8
JESD-609 Code e6
Length 5 mm
Low-Offset NO
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape SQUARE
Package Style SMALL OUTLINE Meter
Packing Method TAPE AND REEL
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 2 mm
Slew Rate-Nom 1 V/us
Sub Category Operational Amplifier
Supply Current-Max 5.7 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN BISMUTH
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Unity Gain BW-Nom 3000 kHz
Voltage Gain-Min 19952.6
Width 5 mm
会社名称日本無線株式会社
設立1915年12月
資本金14,704百万円
所在地164-8570 東京都中野区中野4丁目10-1
URLhttp://www.jrc.co.jp/

NJM4558Mのレビュー

NJM4558M のご注文について
