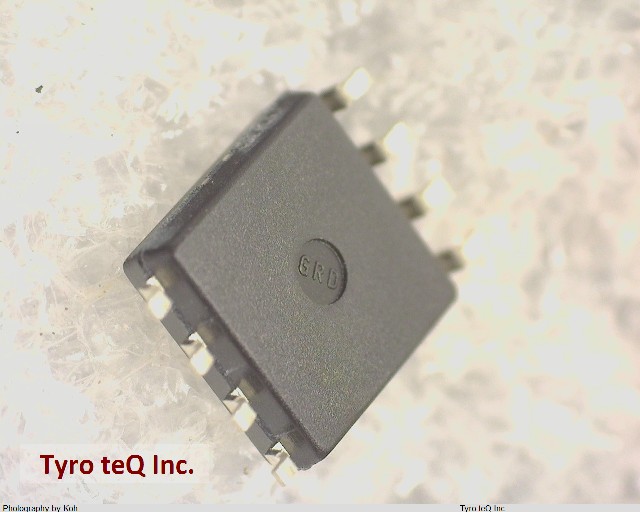

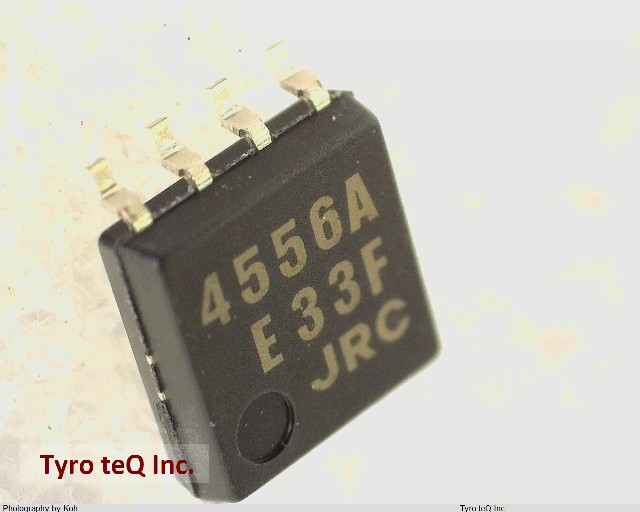

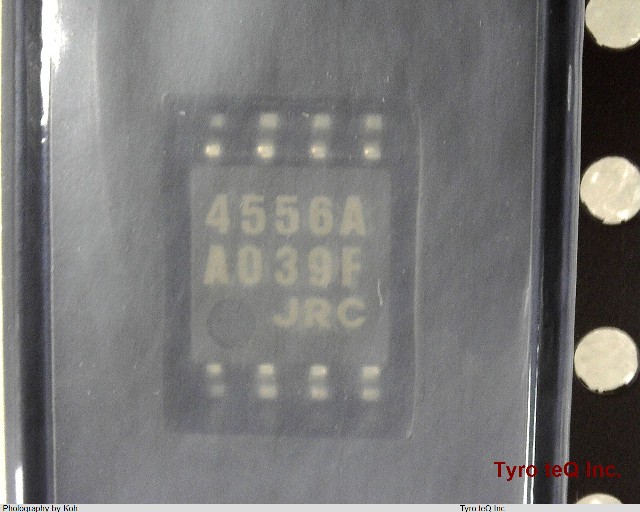

NJM4556AM

Name: NJM4556AM
Brand: JRC
SKU: 240000242-0000-0000-0000

NJM4556AM - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM4556AM の詳細情報

型番	NJM4556AM
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.5 uA
Bias Current-Max (IIB) @25C	0.5 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	6000 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e6
Length	5 mm
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Slew Rate-Nom	3 V/us
Sub Category	Operational Amplifier
Supply Current-Max	12 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	8000 kHz
Voltage Gain-Min	19952.6
Width	5 mm
