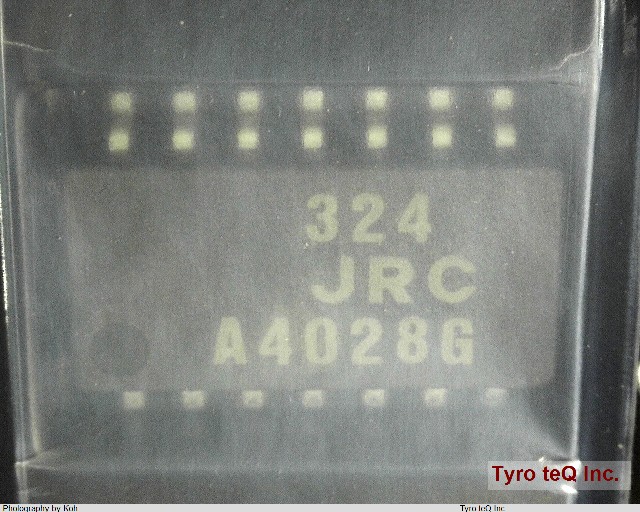

NJM324M (TE1) Jrc

NJM324M (TE1) - JRC の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NJM324M (TE1) の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NJM324M (TE1)
メーカーJRC
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.25 uA
Bias Current-Max (IIB) @25C 0.25 uA
Common-mode Reject Ratio-Min 65 dB
Common-mode Reject Ratio-Nom 70 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000 uV
JESD-30 Code R-PDSO-G14
JESD-609 Code e6
Length 10 mm
Low-Offset NO
Micropower YES
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 75 Cel
Operating Temperature-Min -20 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Packing Method TAPE AND REEL
Power Supplies 5/30 V
Qualification Status Not Qualified
Seated Height-Max 2 mm
Sub Category Operational Amplifier
Supply Current-Max 1.2 mA
Supply Voltage Limit-Max 32 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN BISMUTH
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Voltage Gain-Min 25118.9
Width 5 mm
