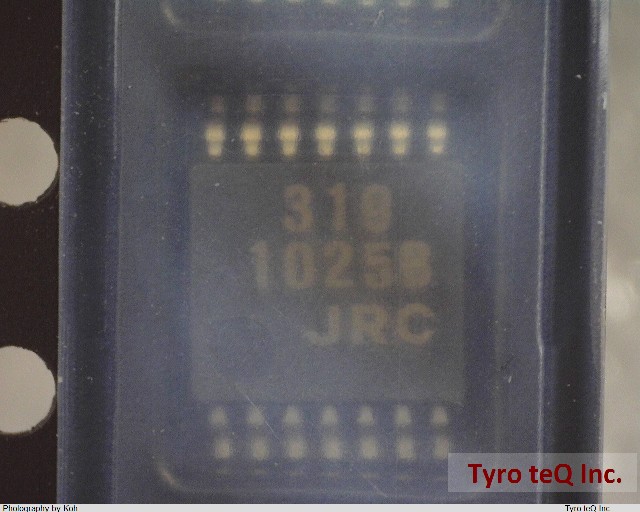

NJM319V データシート

Name: NJM319V
Brand: JRC
SKU: 240008695-0000-0000-0000

NJM319V - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM319V の詳細情報

型番	NJM319V
メーカー	JRC
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	1 uA
Bias Current-Max (IIB) @25C	1 uA
Input Offset Voltage-Max	8000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e6
Length	5 mm
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-40 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Response Time-Nom	80 ns
Seated Height-Max	1.45 mm
Sub Category	Comparator
Supply Current-Max	12.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm
