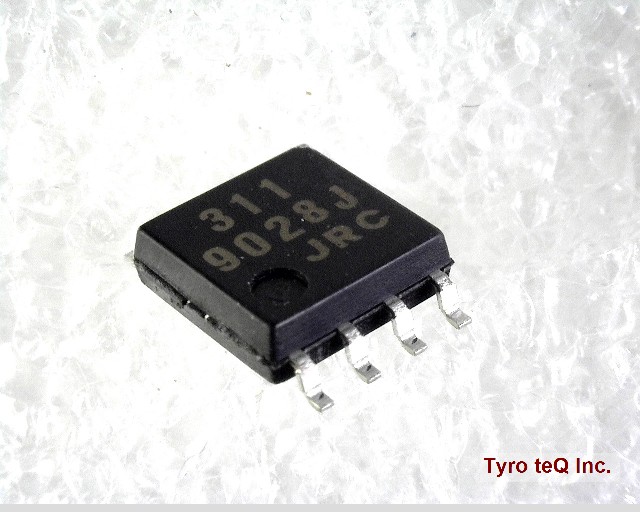

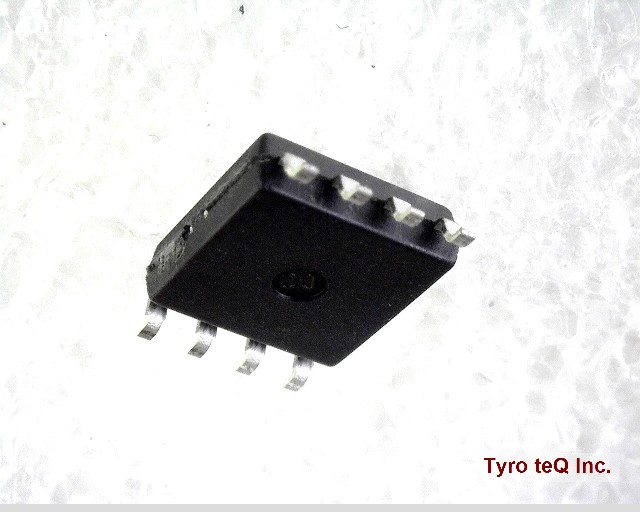

NJM311M データシート

Name: NJM311M
Brand: JRC
SKU: 240008677-0000-0000-0000

NJM311M - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM311M の詳細情報

型番	NJM311M
メーカー	JRC
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Input Offset Voltage-Max	7500 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e6
Length	5 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Output Type	TOTEM POLE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Response Time-Nom	200 ns
Seated Height-Max	2 mm
Sub Category	Comparator
Supply Current-Max	7.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	5 mm
