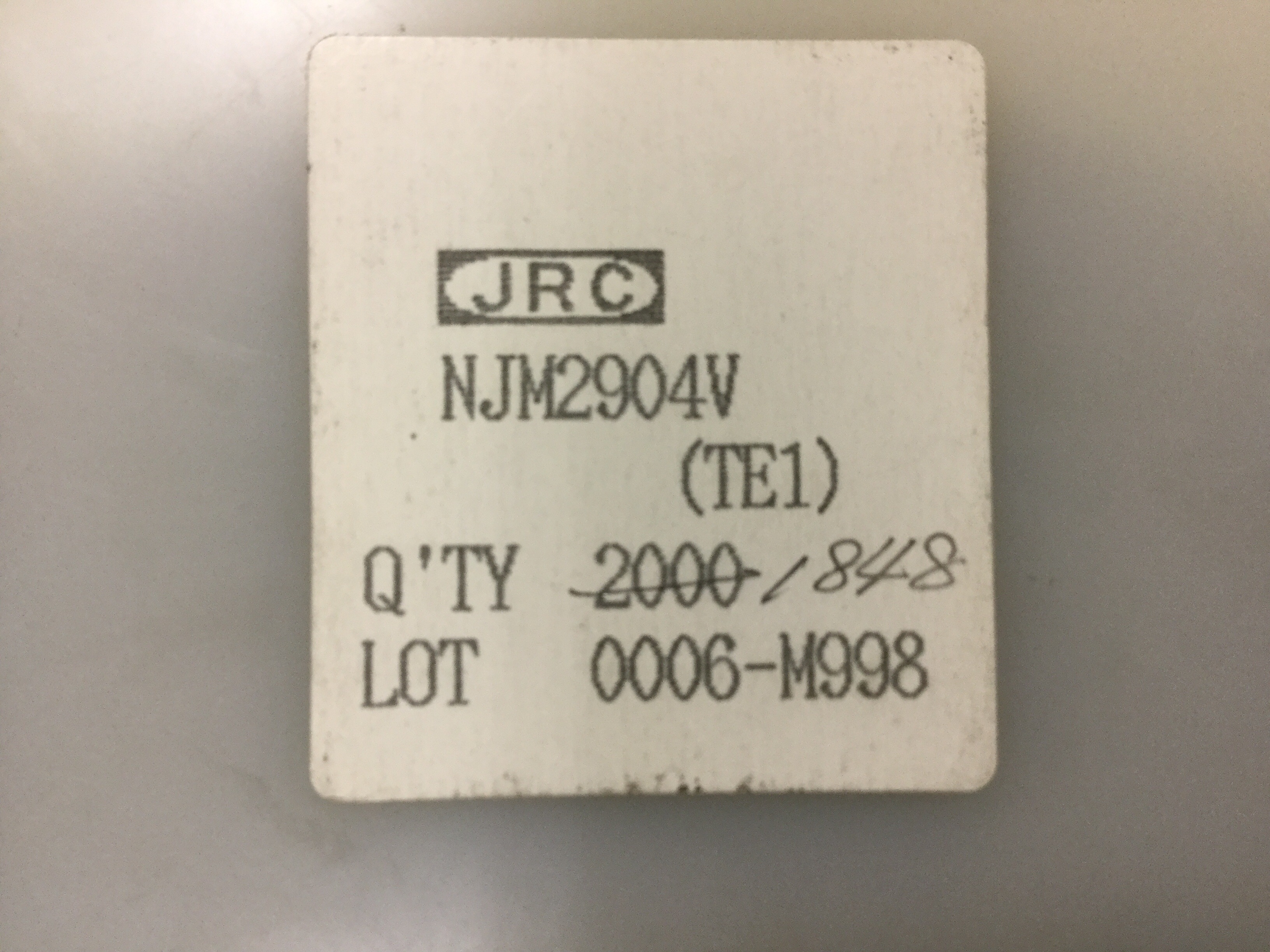

NJM2904V(TE1)

Name: NJM2904V(TE1)
Brand: JRC
SKU: 240000374-0000-0000-0000

NJM2904V(TE1) - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2904V(TE1) の詳細情報

型番	NJM2904V(TE1)
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Common-mode Reject Ratio-Nom	85 dB
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e6
Length	4.4 mm
Low-Bias	NO
Low-Offset	NO
Micropower	YES
Neg Supply Voltage Limit-Max	0 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Power	NO
Power Supplies	+-1.5/+-16/3/32 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Slew Rate-Nom	0.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.2 mA
Supply Voltage Limit-Max	32 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Unity Gain BW-Nom	200 kHz
Wideband	NO
Width	3.5 mm
