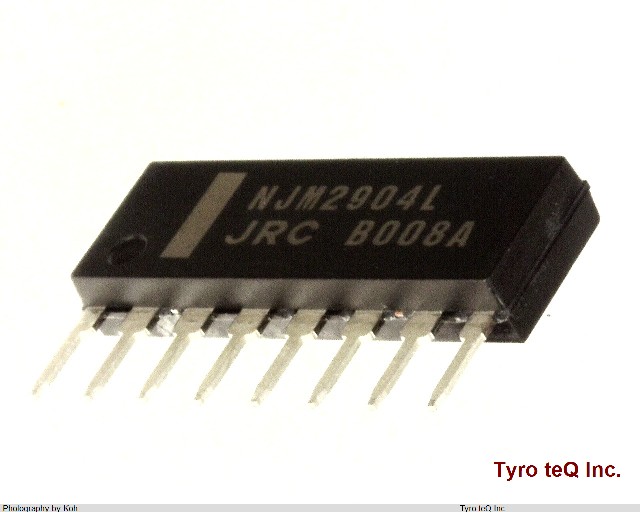

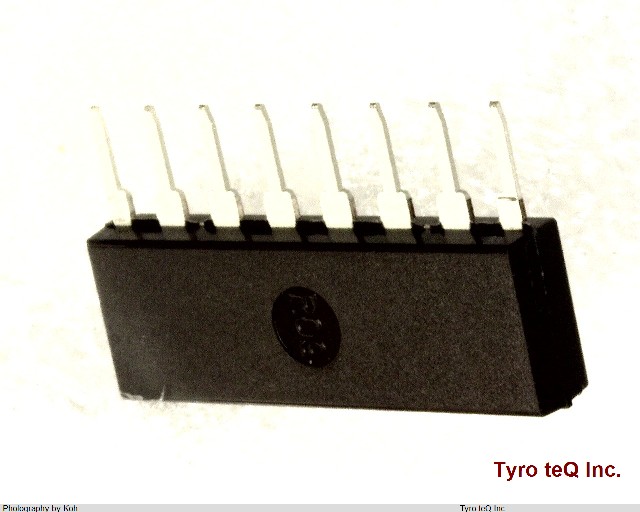

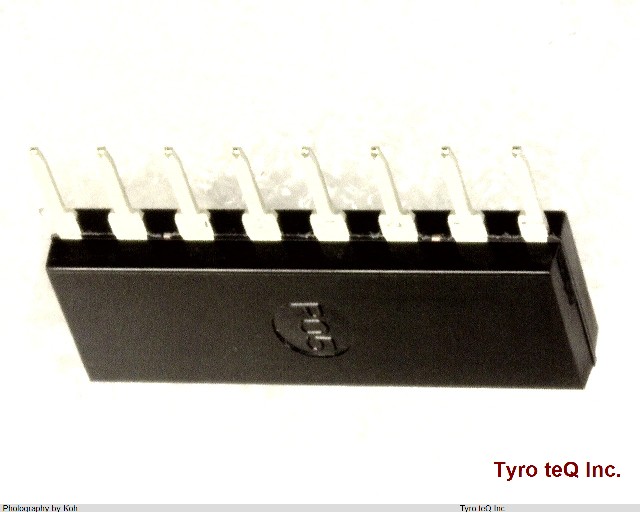

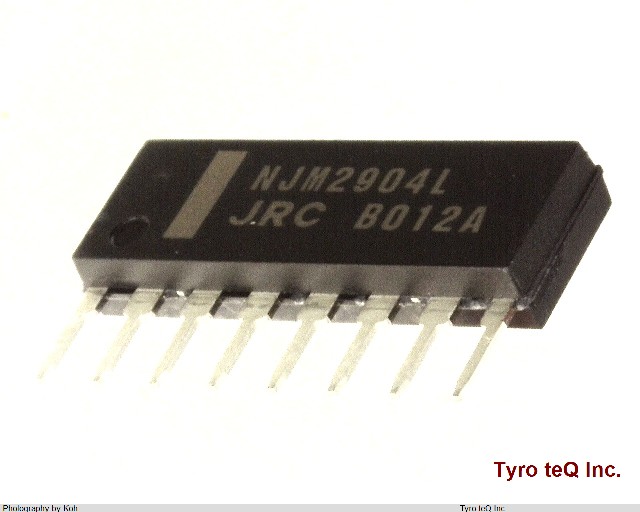

NJM2904L Jrc

NJM2904L - JRC の商品詳細ページです。

1
NJM2904L
  • NJM2904L
  • NJM2904L
  • NJM2904L
  • NJM2904L
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NJM2904L の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NJM2904L
メーカーJRC
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.25 uA
Bias Current-Max (IIB) @25C 0.25 uA
Common-mode Reject Ratio-Nom 85 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000 uV
JESD-30 Code R-PSIP-T8
JESD-609 Code e6
Length 19 mm
Low-Bias NO
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max 0 V
Neg Supply Voltage-Nom (Vsup) 0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code SIP
Package Equivalence Code SIP8,.06
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power NO
Power Supplies +-1.5/+-16/3/32 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 8.3 mm
Slew Rate-Nom 0.5 V/us
Sub Category Operational Amplifier
Supply Current-Max 1.2 mA
Supply Voltage Limit-Max 32 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN BISMUTH
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Unity Gain BW-Nom 200 kHz
Wideband NO
Width 3 mm
会社名称日本無線株式会社
設立1915年12月
資本金14,704百万円
所在地164-8570 東京都中野区中野4丁目10-1
URLhttp://www.jrc.co.jp/
