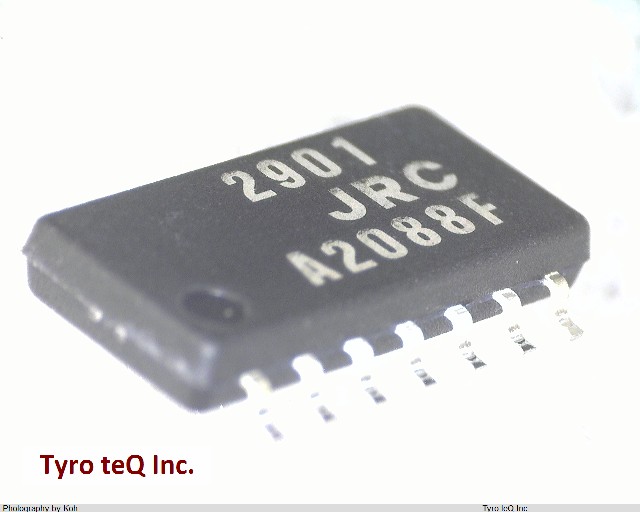

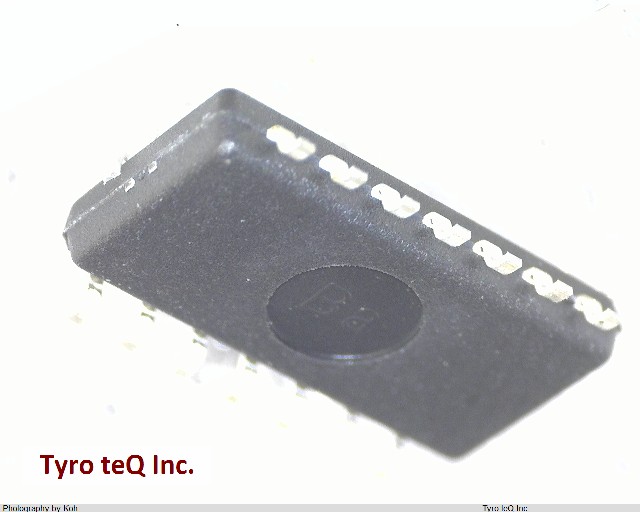

NJM2901M
1
-
- 個
２営業日以内に回答いたします
NJM2901M の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | NJM2901M |
|---|---|
| メーカー | JRC |
| Amplifier Type | COMPARATOR |
| Average Bias Current-Max (IIB) | 0.25 uA |
| Bias Current-Max (IIB) @25C | 0.25 uA |
| Input Offset Voltage-Max | 7000 uV |
| JESD-30 Code | R-PDSO-G14 |
| JESD-609 Code | e6 |
| Length | 10 mm |
| Neg Supply Voltage Limit-Max | 0 V |
| Neg Supply Voltage-Nom (Vsup) | 0 V |
| Number of Functions | 4 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Type | OPEN-COLLECTOR |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Response Time-Nom | 1300 ns |
| Seated Height-Max | 2 mm |
| Sub Category | Comparator |
| Supply Current-Max | 2 mA |
| Supply Voltage Limit-Max | 36 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN BISMUTH |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Width | 5 mm |
| 会社名称 | 日本無線株式会社 |
|---|---|
| 設立 | 1915年12月 |
| 資本金 | 14,704百万円 |
| 所在地 | 164-8570 東京都中野区中野4丁目10-1 |
| URL | http://www.jrc.co.jp/ |
