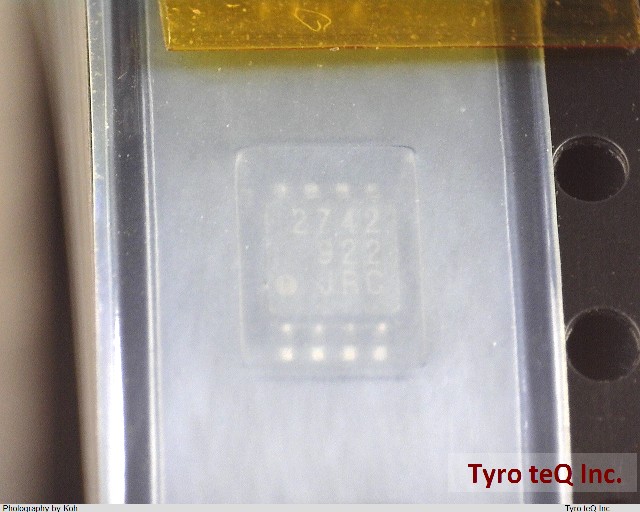

NJM2742RB1-TE1

Name: NJM2742RB1-TE1
Brand: JRC
SKU: 240082215-0000-0000-0000

NJM2742RB1-TE1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2742RB1-TE1 の詳細情報

型番	NJM2742RB1-TE1
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.4 uA
Bias Current-Max (IIB) @25C	0.4 uA
Common-mode Reject Ratio-Nom	75 dB
Frequency Compensation	YES
Input Offset Voltage-Max	12000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	2.9 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	5/+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Slew Rate-Nom	10 V/us
Sub Category	Operational Amplifier
Supply Current-Max	5.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	2000 kHz
Voltage Gain-Min	10000
Wideband	NO
Width	2.8 mm
